Titan Connect™ Electrical System

Titan Connect is more than just a wire harness. It’s an electrical platform which enables the truck to become a connected system. J1939 CAN communication links the engine and transmission with a “smart” power distribution module, a keypad and the NexStar crane. Other accessories such as compressors and power units can also be added.

Auto Crane was the first in the work truck industry to start connecting components using J1939 communication. Creating this “connect” system has allowed Auto Crane to feed information to existing truck telematics, another industry first.

Features:

• Power On Demand™
• Automotive-grade wire harness
  • Fully sealed connectors
• “Smart” Power Distribution Module
  • Tracks maintenance intervals
  • Solid-state (no fuses or relays)
• Programmable PDM controls
  • Automatic shut-off if there is an over-current
  • No fuses or relays are utilized which improves reliability.
• Rubberized keypad with large tactile push buttons
• Automotive-grade wire harness, fully sealed Amphenol/Deutsch connectors
• Pre-Wired Circuits
• Crane
• Air Compressor or Power Unit
• Compartment Lights
• Work Lights 1 (left or bed)
• Work Lights 2 (right or body rear)
• AUX 1 (boom tip lights)
• AUX 2 (strobe lights or beacon)
• AUX 3 (spare)

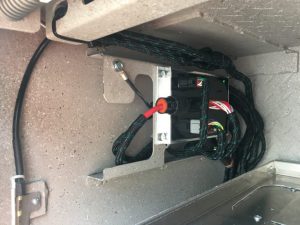

“Smart” Power Distribution Module (PDM)

The programmable PDM controls the truck. The PDM features automatic shut-off if there is an over-current. No fuses or relays are utilized which improves reliability.

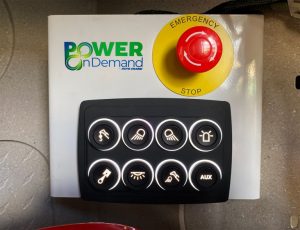

Keypad

The rubberized keypad with large tactile pushbuttons is built for work gloves and survives the elements.

Wire Harness

The wire harness is built with automotive-grade wires, fully sealed Amphenol/Deutsch connectors and is protected in a braided loom.

Pre-Wired Circuits

• Crane
• Air Compressor or Power Unit
• Compartment Lights
• Work Lights 1 (left or bed)
• Work Lights 2 (right or body rear)
• AUX 1 (boom tip lights)
• AUX 2 (strobe lights or beacon)
• AUX 3 (spare)

Power On Demand™

Is Your Truck Equipped with Power On Demand™?

Auto Crane has launched a patent-pending, simple-to-use system that maximizes efficiency with vehicle automation. Power On Demand™ means total truck automation at the touch of a button. This save on fuel, chassis and PTO maintenance costs as well as extends the life of your truck. Contact Auto Crane to see how much you can save.

Power On Demand™ is a software upgrade that runs on the Titan Connect electrical system. The Power On Demand™ software option must be ordered with the Titan Connect™ electrical system. The software upgrade can also be ordered and installed at a later date.

Benefits:

• Lowers fuel and maintenance costs
• Extends chassis life
• Streamlines job tasks
• Lowers acquisition costs
• Helps meet sustainability goals

Checkout this short video which demonstrates automatic PTO engagement and chassis idle control:
