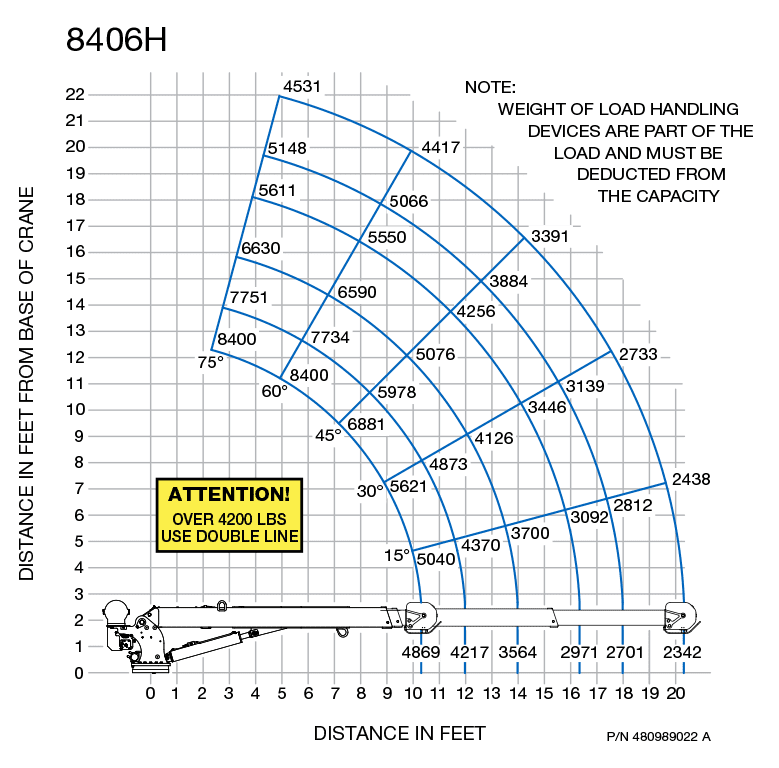

| Capacity | 8,400 lbs (3,810 kg) at 6.0 ft (1.83 m) | ||
| Rating | 50,000 ft-lb (6.97 t-m) | ||
| Length | 20.5 ft (6.25 m) fully extended | ||
| Weight | 1,755 lb (796 kg) | ||
| Chassis | Class 6 (20,500 GVWR minimum) | ||
| Body | Titan 60 | ||
| Stowed Boom Length | 13′ 4″ (3.97 m) | ||
| Extended Boom Length | 20′ 4″ (6.2 m) | ||
| Width | 1′ 11″ (.58 m) | ||
| Height | 2′ 8.4″ (.82 m) | ||
| Base Plate Dimensions | 16.75″ x 16.75″ (0.43 m x 0.43 m) | ||
| Single Line Speed | 60 ft/min (18.3 m/min) | ||
| Boom Down | 20-28 seconds (full stroke of cylinder) | ||
| Boom Retract | 18-24 seconds (full stroke of cylinder) | ||
| Hydraulic Requirements | 12 gpm (45 L/min) at 2,750 psi (190 bar), 13 gpm (49 L/min) at 2,750 psi (190 bar) – Hardwired | ||
| Cable | 95 ft (28.95 m) of 3/8″ (9.52 mm) aircraft quality cable | ||
| Standards | ANSI B30.5, OSHA 1910.180 | ||
| Warranty | 2 year warranty | ||
| Resources |
8406H Tech Sheet 8406H Manual 8406H NexStar 8406H Part No. Table Service Cranes Sales Sheet Crane Accessories Part No. Table 8406h new valve block Manual |
||
For more support resources, [click here]

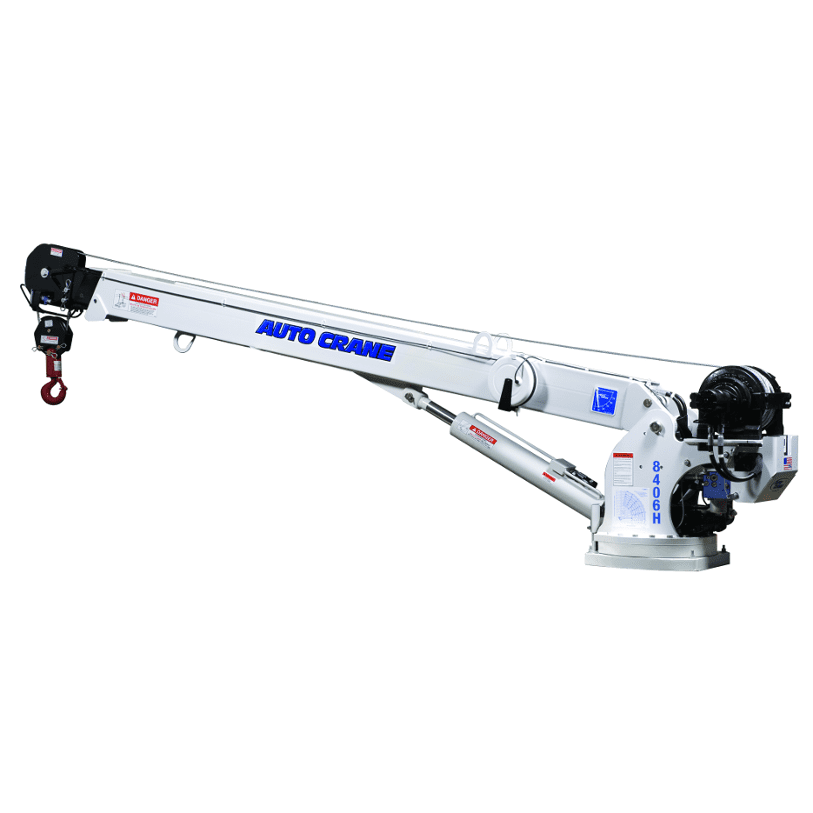

Features and Benefits of the 8406H Models
- Automatic overload protection system
- Keeps people, equipment, and loads safer
- Full, non-continuous power rotation
- -370° movement for maximum versatility in lifting
- Capable of lifting at 100% in all positions on Titan® crane bodies with outriggers
- Maximized capacity for lifting
- -14° to +75° boom elevation
- Greater work area capability with maximum range of working angle limits
- Small sheave
- Fits into tighter spaces
Features and Benefits of NexStar™ Models
- Proportional control of multiple functions simultaneously and independently
- Adjust any function anytime to a different speed, for total control over the load
- Level sensors monitor the angle of the truck and crane with the NexStar FM remote system on a Titan® crane body
- Prevents operation in unsafe, unlevel conditions
- Automatic stop at 100% load capacity
- Keeps people, equipment, and loads safer
- Adjustable speed settings; from 25% to 100%
- Enables fine tuning of speeds for total control over the load
- The NexStar FM remote system receiver displays load-monitoring and diagnostic readouts in plain English
- No codes to look-up or memorize; operator views precise percentage load capacity
- NexStar available with either tethered or fully-featured wireless remote options
- Your choice for preferred control method
- Transmitter is IP66 rated and CE certified
- Sealed and water protected for maximum durability
Requirements
- Truck must be equipped with 560142-000 outriggers or equal
- 20,500 GVWR minimum chassis requirement. (Does not include bodies or accessories)
- Engine tachometer and throttle control required for proper crane installation
Control Options:
- NexStar™ wireless remote with tether
- Hard-Wired
