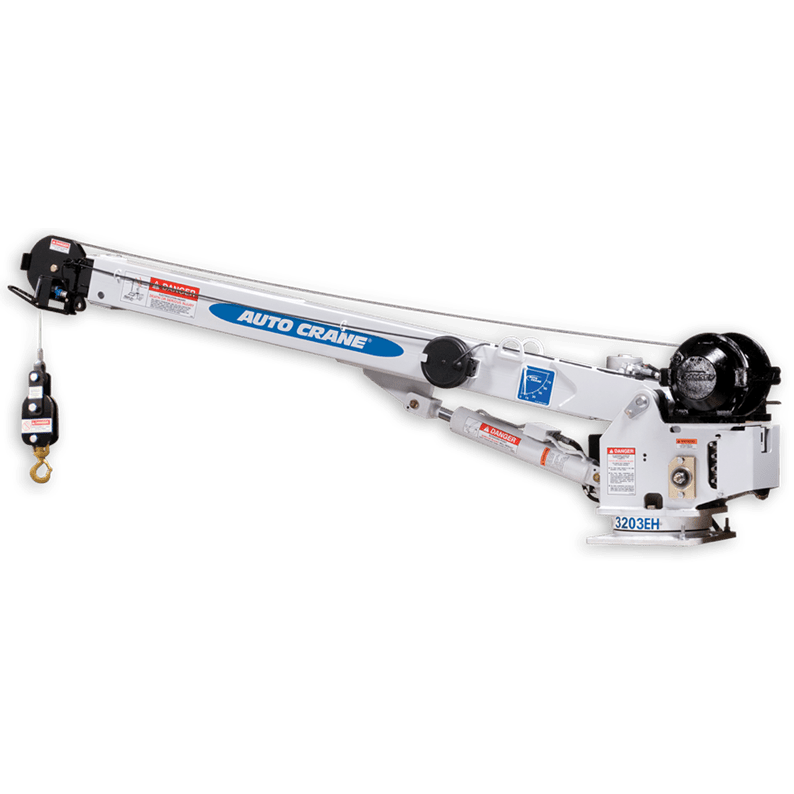

EHC-32Return to Products Page

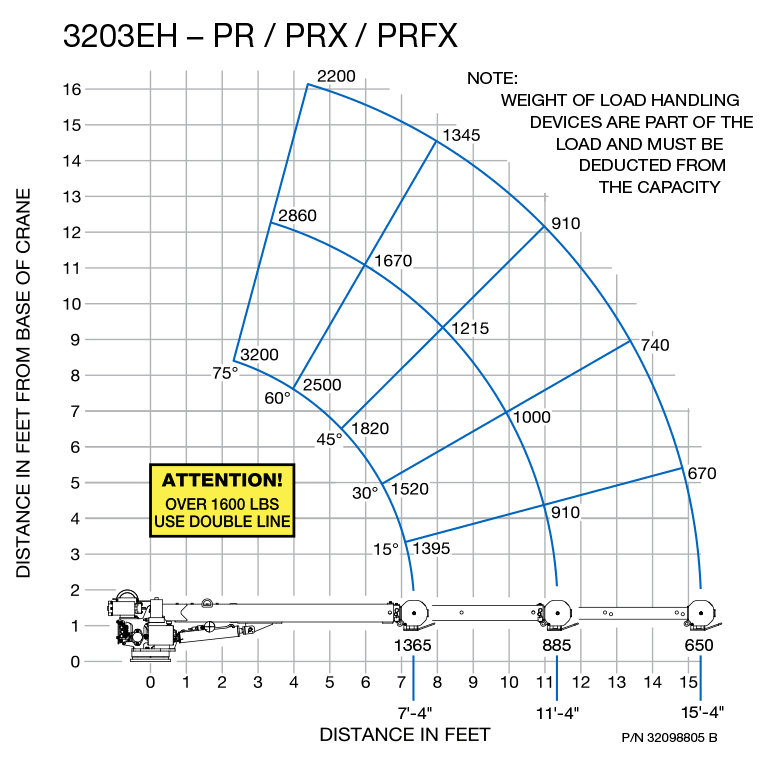

| Capacity | 3,200 lbs (1,452 kg) at 2.3 ft (0.7 m) | ||
| Rating | 10,000 ft-lb (1.38 t-m) | ||
| Length | 15.3 ft (9.14 m) fully extended | ||
| Weight | 690 lb (322 kg) | ||
| Chassis | Class 3 (8,800 GVWR minimum) | ||
| Body | Titan 16 or Titan 38 | ||
| Stowed Boom Length | 9' 1½" (2.78 m) | ||
| Extended Boom Length | 15′ (4.57 m) | ||
| Width | 1′ 8.63″ (.52 m) | ||
| Height | 2′ (.61 m) | ||
| Base Plate Dimensions | 13.5″ x 16.75″ (0.34 m x 0.43 m) | ||
| Single Line Speed | 30 ft/min (9.17 m/min) | ||
| Boom Down | 23-35 seconds (full stroke of cylinder) | ||
| Boom Retract | 13-18 seconds (full stroke of cylinder) | ||
| Motor | 12 volt DC, series wound, 1.9 hp hoist motor | ||
| Cable | 62 ft (18.9 m) of 7/32″ (6 mm) 5,600 lb (2540 kg) aircraft quality cable | ||
| Standards | ANSI B30.5, OSHA 1910.180 | ||
| Warranty | 2 year warranty | ||
| Resources |
3203EH Tech Sheet 3203EH Part No. Table 3203-PR-PRX-PRFX-Manual-6-29-11 3203 PRX Remote Pendant Manual 3203 PRXS Addendum Service Cranes Sales Sheet EHC-3.2 NexStar Manual EHC-3.2 Wireless - 320950002-0226-B |
||
For more support resources, [click here]
Requirements
- Truck must be equipped with jackleg extending minimum 3′ 9″ (1.14 m) from centerline of truck
- 8,800 GVWR minimum chassis requirement. (Does not include bodies and accessories)
- Battery Information: 575 amp cold cranking rating, 130 minute reserve capacity, maintenance type battery required for 12 volt DC operation. 70 amp minimum truck alternator required
Configurations:
- PR, PRX, PRFX
Control Options:
- Hard-Wired
- Omnex with Wireless Remote
- NexStar™ with Wireless or Tethered Remote
