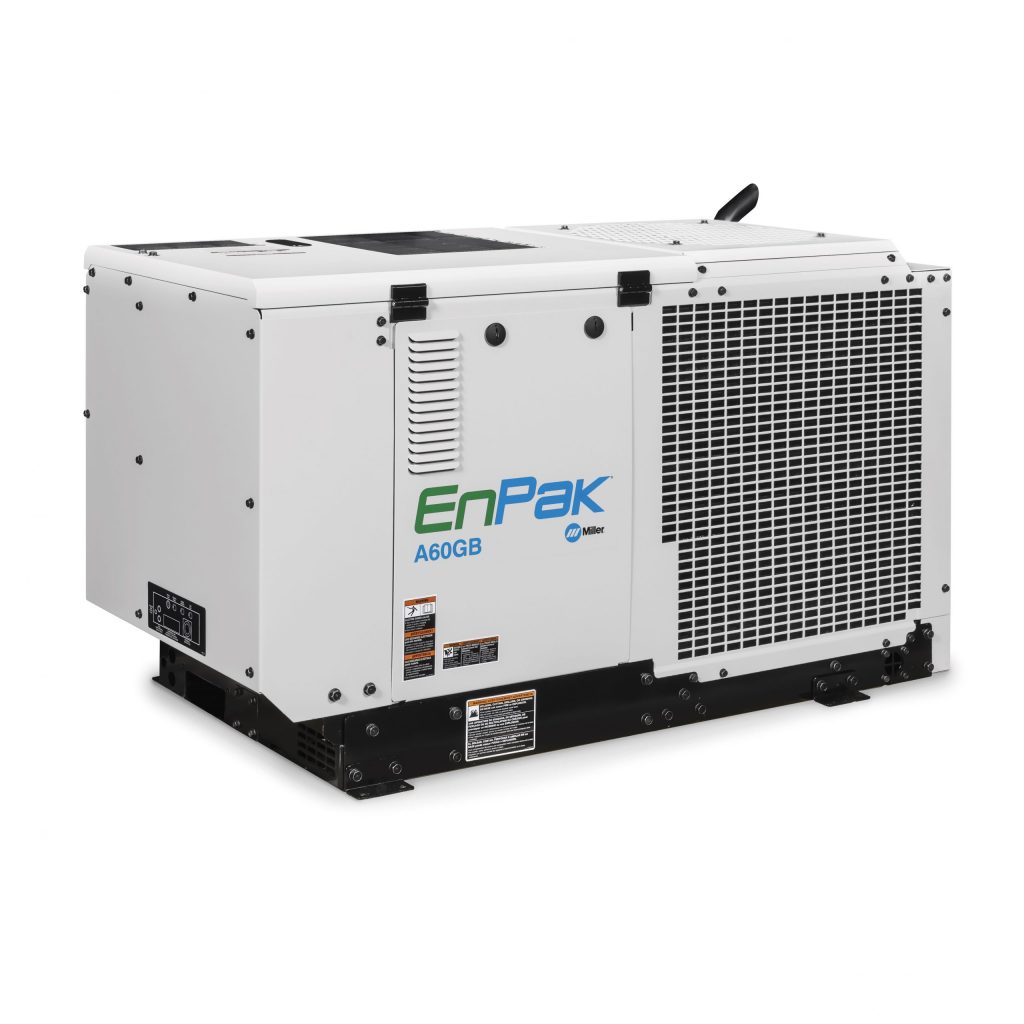

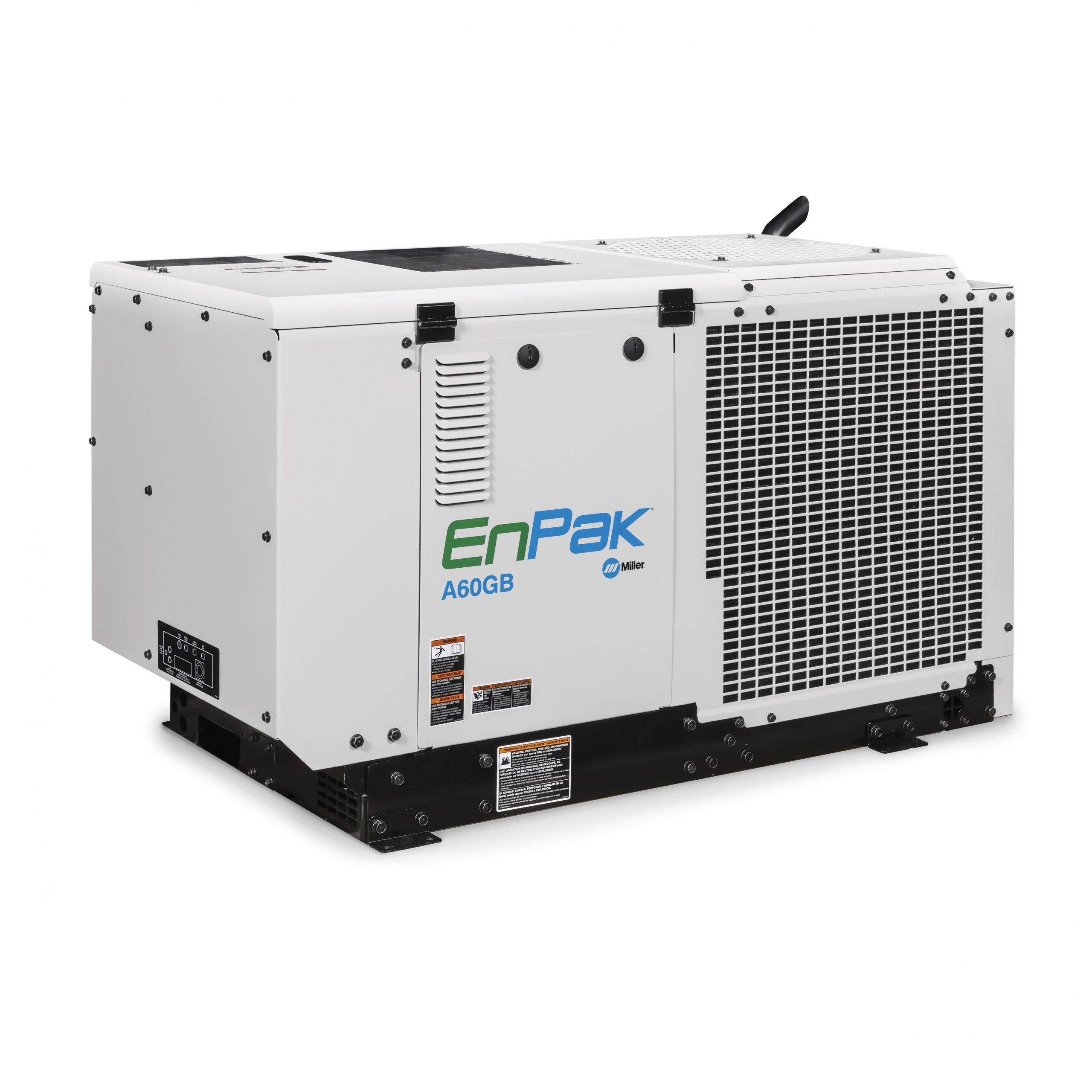

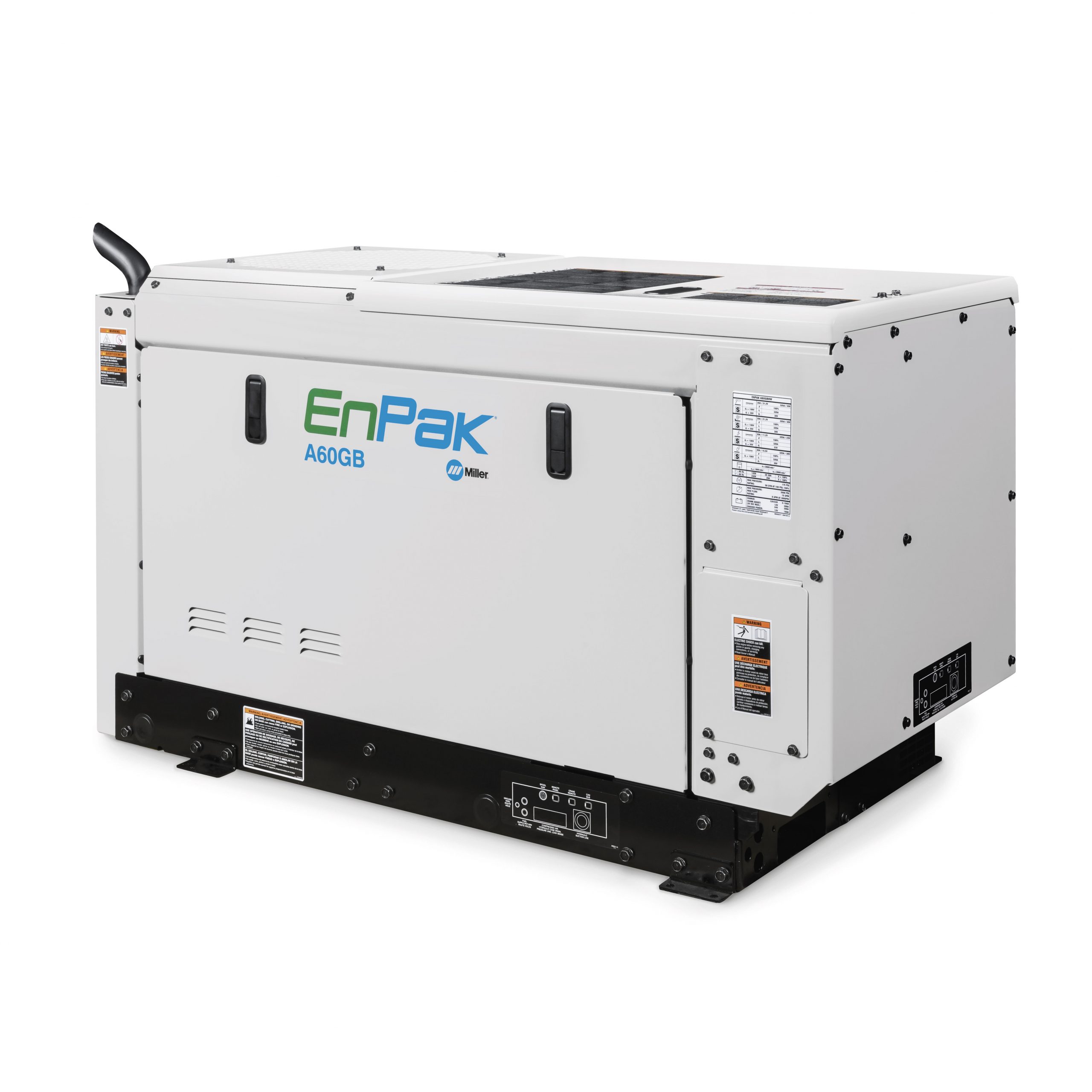

Miller EnPak® A60GBReturn to Products Page
| Engine Brand: | Kubota | ||
| Engine Idle Speed: | 1800 RPM | ||
| Engine Weld Speed: | 1800 RPM, 2800 RPM | ||
| Fuel Type: | Diesel | ||
| Horsepower: | 24.8 hp | ||
| Rated Output: | CC / CV | ||
| Single Phase Generator Continuous Power: | 7000 W | ||
| Rated Carbon Diameter: | 1/4 in (6.4 mm) | ||
| Compressor Brand: | Rotorcomp | ||
| Compressor Free Air Delivery: | 60 cfm (1.70 m3/min) | ||
| Compressor Working Pressure: | 80 – 175 psig | ||
| Compressor Duty Cycle: | 100% | ||
| Compressor Automatic Shutdown: | High pressure (200 psi) | ||
| Hydraulic Pump Brand: | Casappa | ||
| Hydraulic Rated Output: | 8.0 gpm at 3,000 psi at 2,800 rpm, 50% duty cycle | ||
| Hydraulic Max Pressure: | 3,500 psi | ||
| Hydraulic Flow Rate: | 16 gpm (open center or with optional closed center conversion kit) | ||
| Battery Charge: | 12/24 V, 150 A | ||
| Crank Assist: | 12/24 V, 300 A | ||
| Chassis Power: | 12/24 V, 150 A | ||
| Warranty: | 3 Years | ||
| SKU: | 739186004 | ||
| Resources |
Miller EnPak A60 Flyer Miller EnPak A60 Spec Sheet |
||
For more support resources, [click here]
A revolutionary, fully-integrated power system for work trucks. EnPak combines a rotary-screw air compressor, hydraulic pump, generator and a Kubota D902T 24.8 HP, Tier IV Final diesel engine in a single unit and is fully-functional with the truck turned off. The added turbo delivers more power for even better performance.
The EnPak A60GB has air, generator, battery charge with chassis power capability but does not have welding or hydraulic power capability.
Auto Crane is a dealer for the engine-driven Miller EnPak power units. Please call Auto Crane for a quotation.
Note: Miller EnPak power units do not include the 20 gal hydraulic tank (P/N 739188093), NexStar adapter (P/N 739188095), mounting kit (P/N 739188066) or installation (P/N 716861500).
Reference the Miller website for more details
Miller A30GBW website.
