What Makes Auto Crane Outriggers Better with a Titan Body?

We have designed our outriggers with the body and crane to compliment one another and increase the overall rigidity of the truck. Key features include:

• Stability with 100% capacity all around the lift zone with just the one set of outriggers
  • Allows you to set the load down on the side of the truck to perform work like the example below

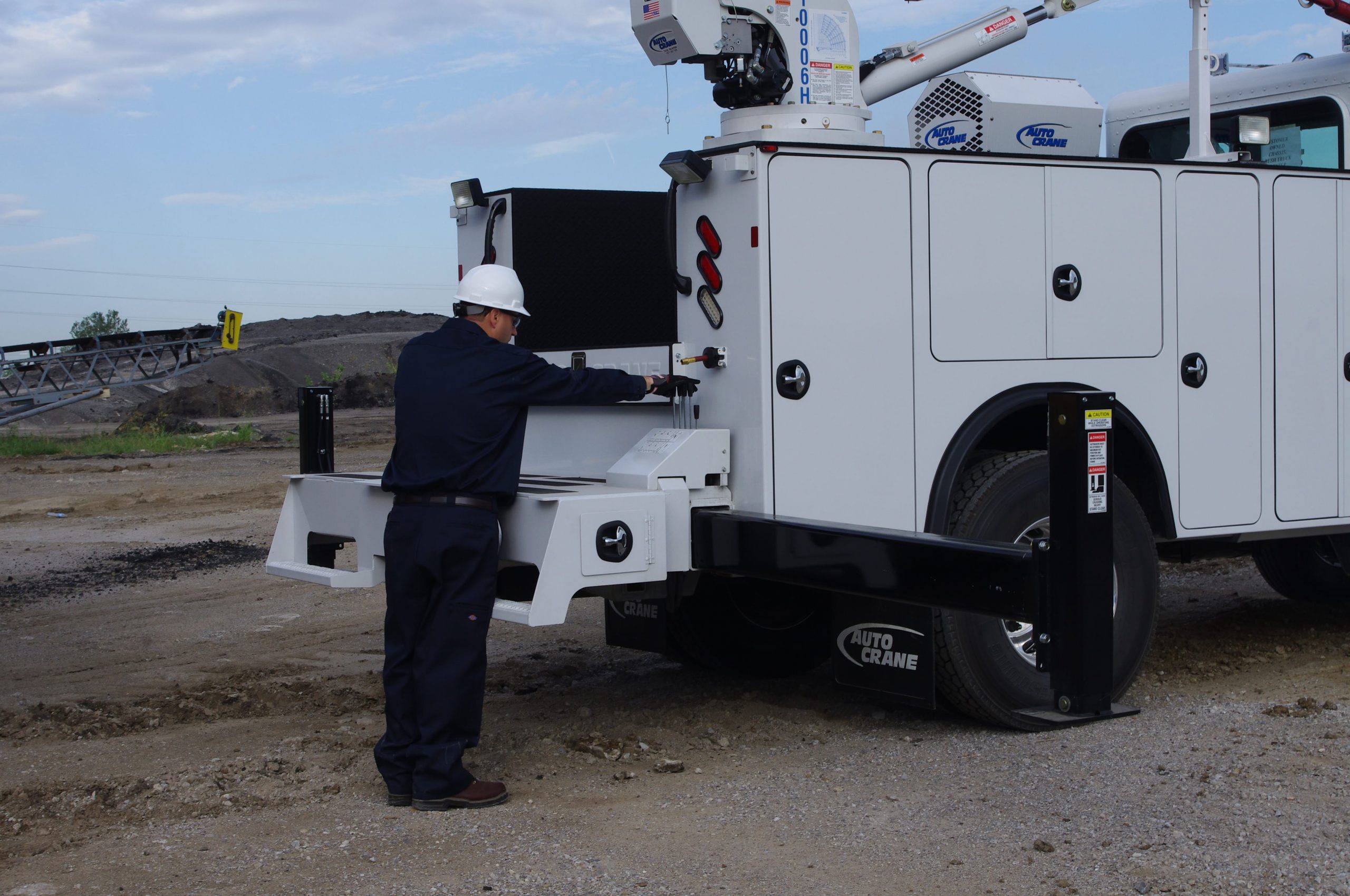

• Only rear outriggers to deploy (faster setup is more productivity)
• Lighter weight without front outriggers (more payload)

Real World Example

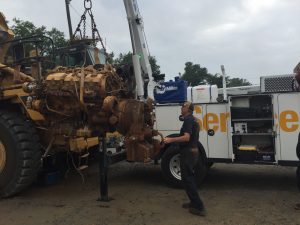

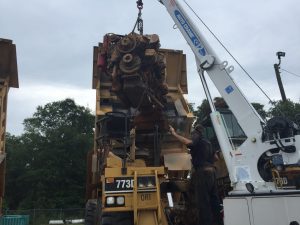

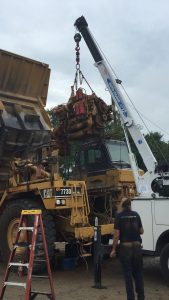

This mechanic used the HC-12 crane to pick a 7,100 lb engine and transmission at 12-1/2 ft out and lift it over the rails of the haul truck then safely set it at the side of the truck with the Titan 85 body and outrigger package. The mechanic saved time by not having to remove the rails from the haul truck or separate the transmission from the engine to make the lift in the first place.

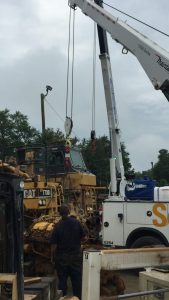

With the engine safely set on the side of the truck, the competitor crane couldn’t even lift the load with the truck ideally positioned off the back bumper.

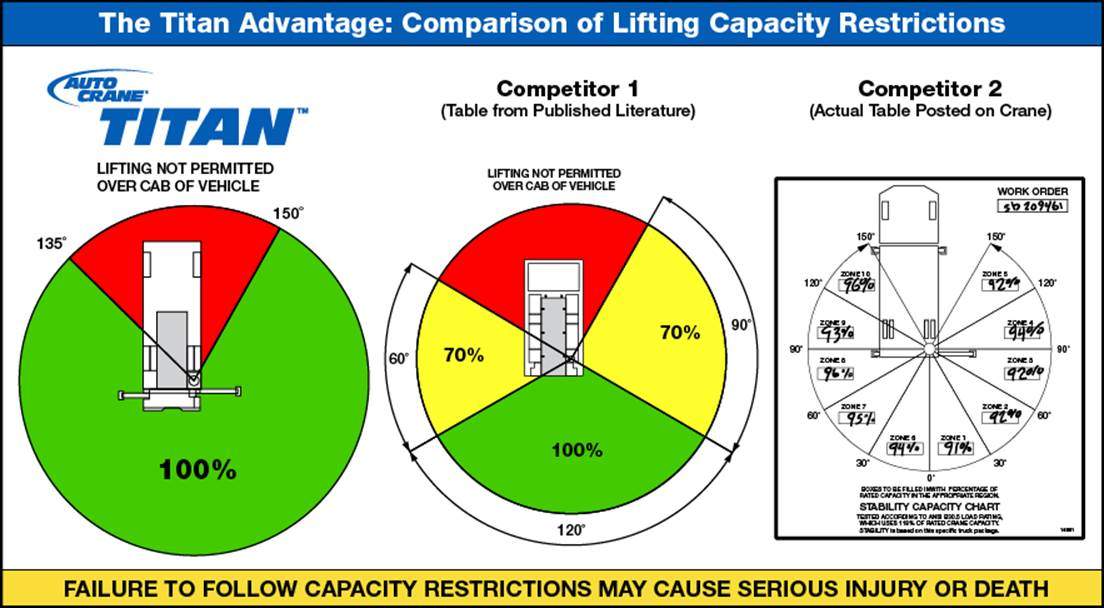

Competitors De-Rate Off the Sides

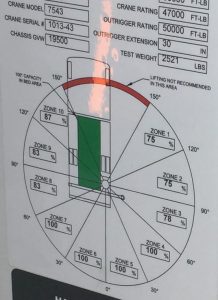

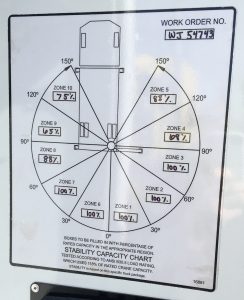

The competition de-rates the lift capacity off the side of the truck as much as 30% or more!

Options

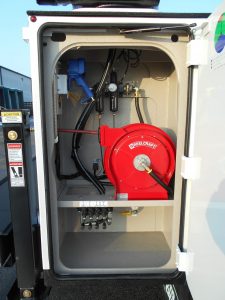

The outrigger controls can be located outside on the outrigger or internally in the crane compartment as shown in these photos.
