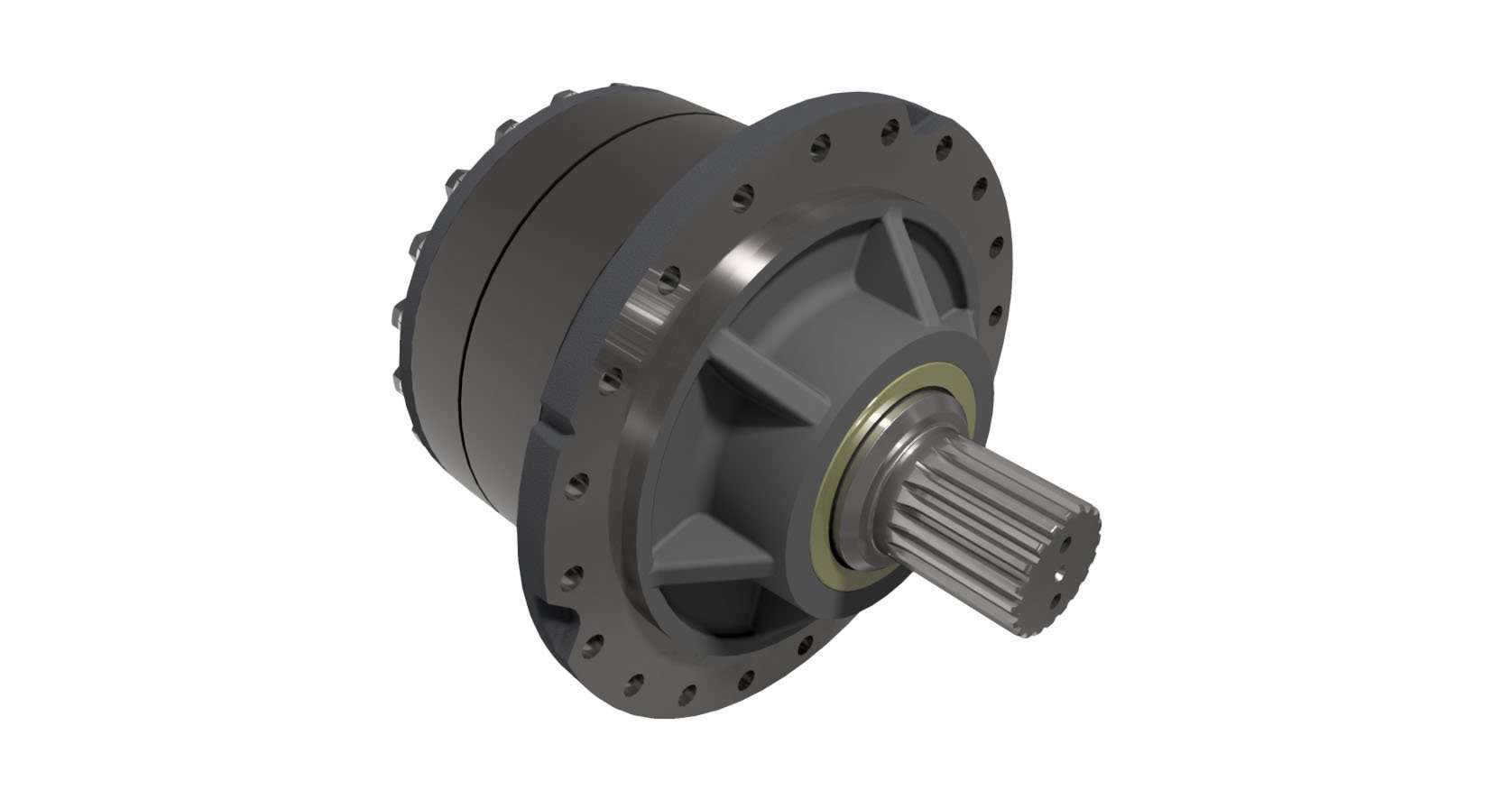

310 Shaft Drive
Output Torque
310,000 In. Lbs.
35,025 Nm
Features & Benefits
- Exclusively Available With Load-N-Lock™ Shaft Retention
- Gearbox Mounting – Flanged, Flangeless, Eccentric Pilot or Custom
- Output Shaft – 20T 6/12 DP Spline x 4.25″, 4.50″ Dia. x 1″ Key x 4.25″ Long or Custom
- Input Mount: SAE “A” (2 & 4 Bolt), SAE “B” (2 & 4 Bolt), SAE “C” (2 & 4 Bolt), SAE “D” (4 Bolt)
| Maximum Intermittent Output Torque | 310,000 In. Lbs. / 35,025 Nm. |
| Continuous Output Torque | 160,000 In. Lbs. / 18,078 Nm. |
| Maximum Input Speed | 3,000 RPM |
| Standard Ratios | 20, 26, 30, 40 |
