132 Spindle DriveReturn to Products Page

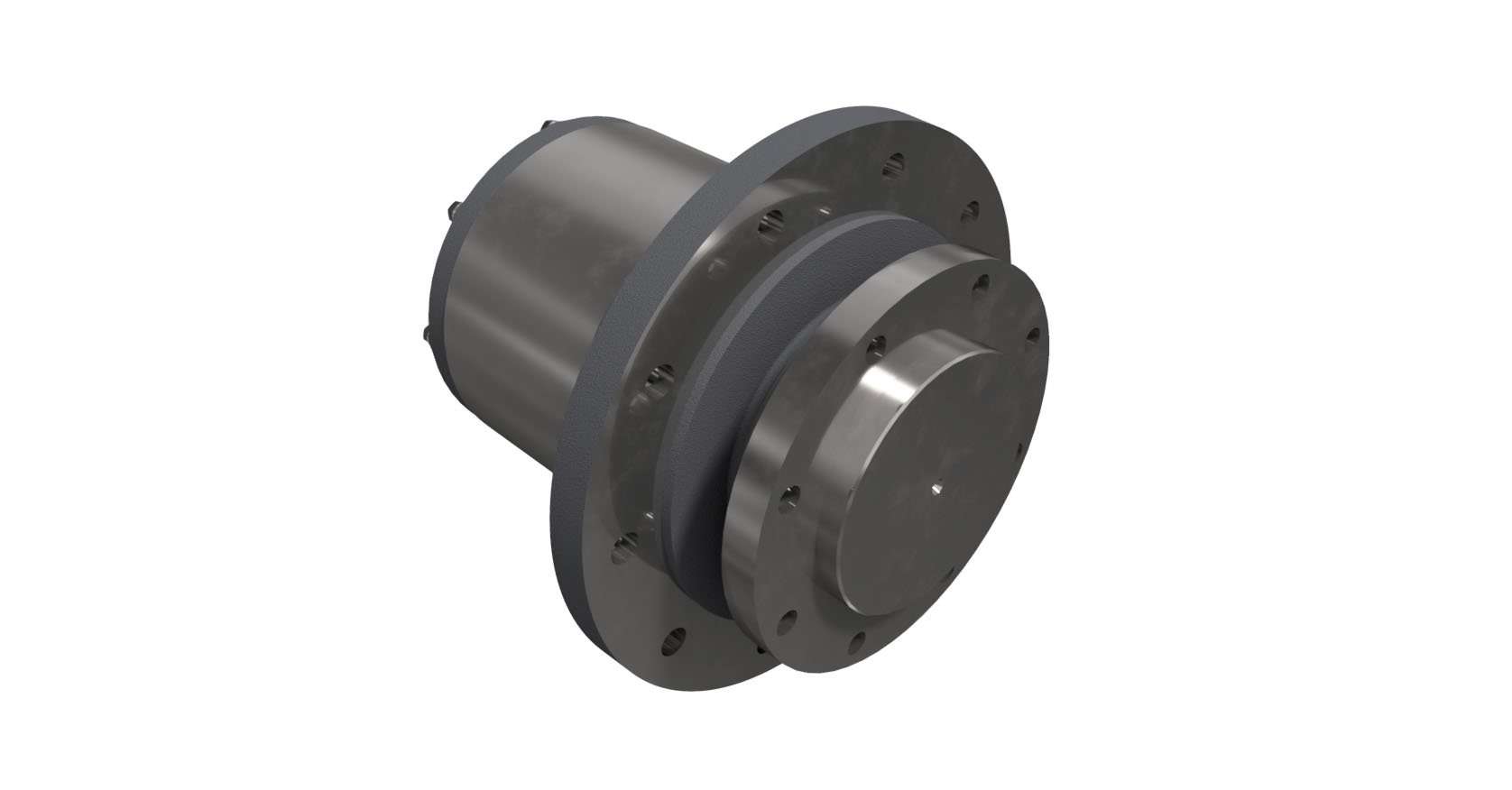

132 Spindle Drive
Output Torque
130,000 In. Lbs.
14,688 Nm
Features & Benefits
- Exclusively Available With Load-N-Lock™ Shaft Retention
- Gearbox Mounting – Flanged, Flangeless, Eccentric Pilot or Custom
- 10.91″ Dia., 7.00″ Dia. Pilot (8) 3/4 – 16 UNF – Thru on 9.50″ Dia. B.C. or Custom
- Input mount SAE “A” (2 & Modified 4 bolt), SAE “B” (2 Bolt, 4 Bolt, SAE “C” (2 & 4 Bolt) and SAE “D” (4 Bolt)
- Available With Metal Face Seal Option
| Maximum Intermittent Output Torque | 130,000 In. Lbs. / 14,688 Nm. |
| Continuous Output Torque | 65,000 In. Lbs. / 7,344 Nm. |
| Maximum Input Speed | 3,000 RPM |
| Standard Ratios | 4, 6, 13, 15,19, 26, 33, 36, 45, 86, |
