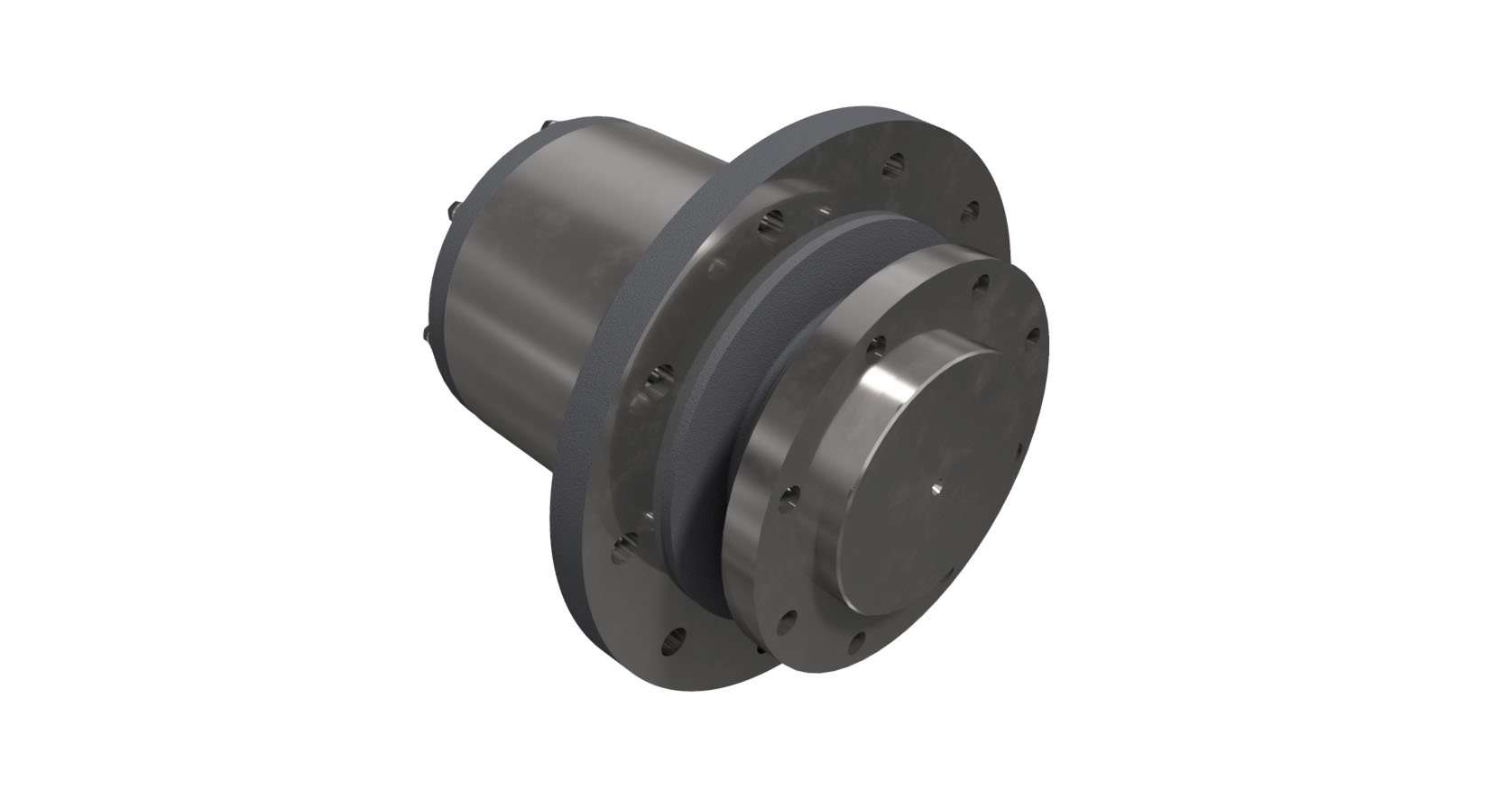

160 Spindle Drive
Output Torque
160,000 In. Lbs.
18,078 Nm
Features & Benefits
- Exlusively Available With Load-N-Lock™ Shaft Retention
- Gearbox Mounting – Flanged, Rectangular or Custom
- 10.91″ Dia., 7.00″ Dia. Pilot (8) 3/4 – 16 UNF – Thru on 9.50″ Dia. B.C. or Custom
- Input Mount SAE “A” (2 & Modified 4 bolt), SAE “B” (2 Bolt), SAE “B” (4 Bolt), SAE “C” (2 & 4 Bolt) and SAE “D” (4 Bolt)
- Available With Metal Face Seal Option
| Maximum Intermittent Output Torque | 160,000 In. Lbs. / 18,078 Nm. |
| Continuous Output Torque | 80,000 In. Lbs. / 9,039 Nm. |
| Maximum Input Speed | 3,000 RPM |
| Standard Ratios | 4, 5, 19, 24, 26, 32 |
