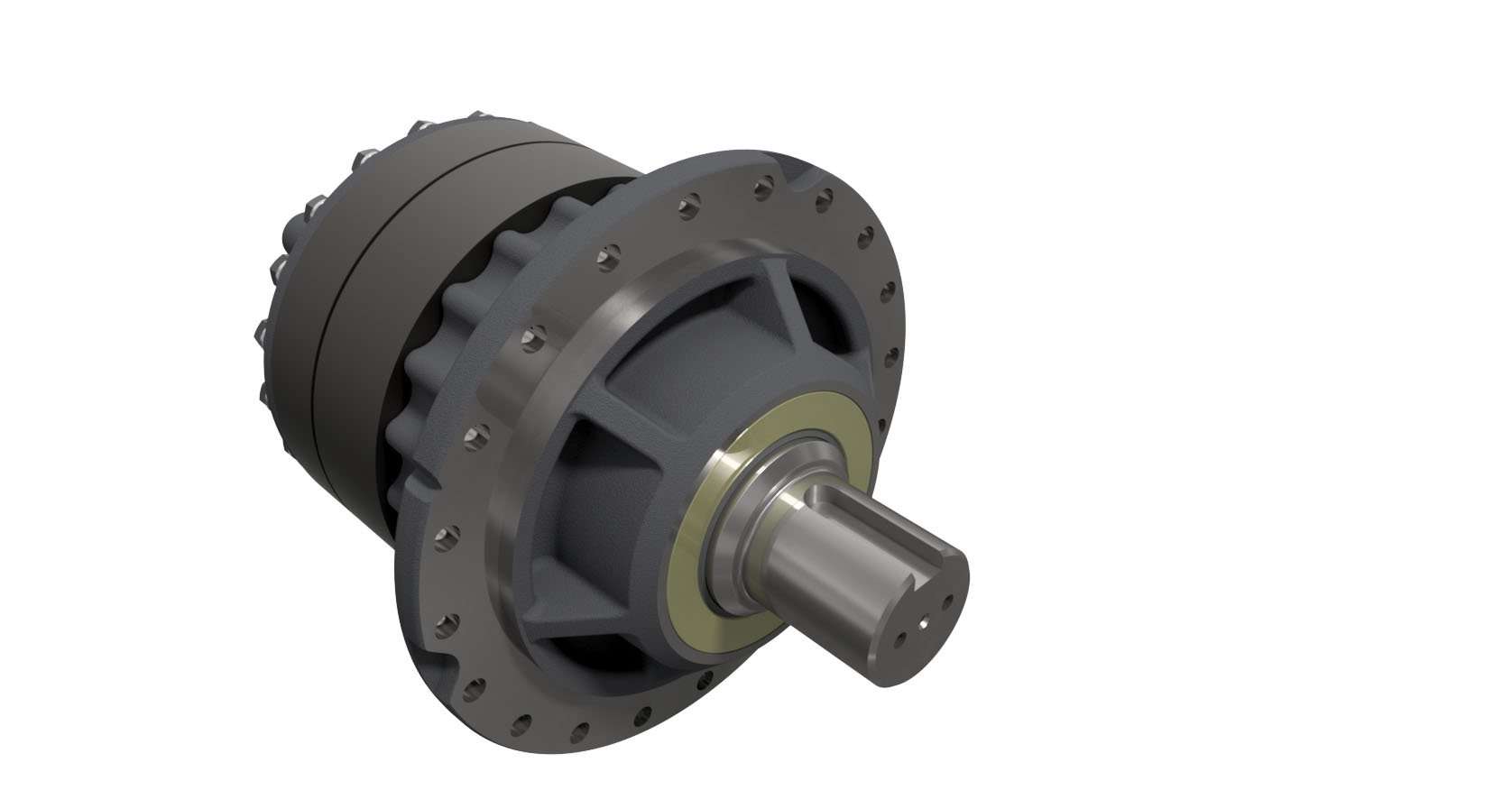

252 Shaft Drive
Output Torque
250,000 In. Lbs.
28,246 Nm
Features & Benefits
- Available With Load-N-Lock™ Shaft Retention
- Gearbox Mounting – Flanged, Flangeless, Eccentric Pilot or Custom
- Output Shaft – 20T 6/12 DP Spline x 4.25″, 3.75″ Dia. x 1″ Key or Custom
- Input mount SAE “C” (2 & 4 Bolt), SAE “D” (4 Bolt) and SAE “E” (4 Bolt)
| Maximum Intermittent Output Torque | 250,000 In. Lbs. / 28,246 Nm. |
| Continuous Output Torque | 125,000 In. Lbs. / 14,123 Nm. |
| Maximum Input Speed | 3,000 RPM |
| Standard Ratios | 20, 26, 30, 38, 40, 51 |
