D50 Anchor DriveReturn to Products Page

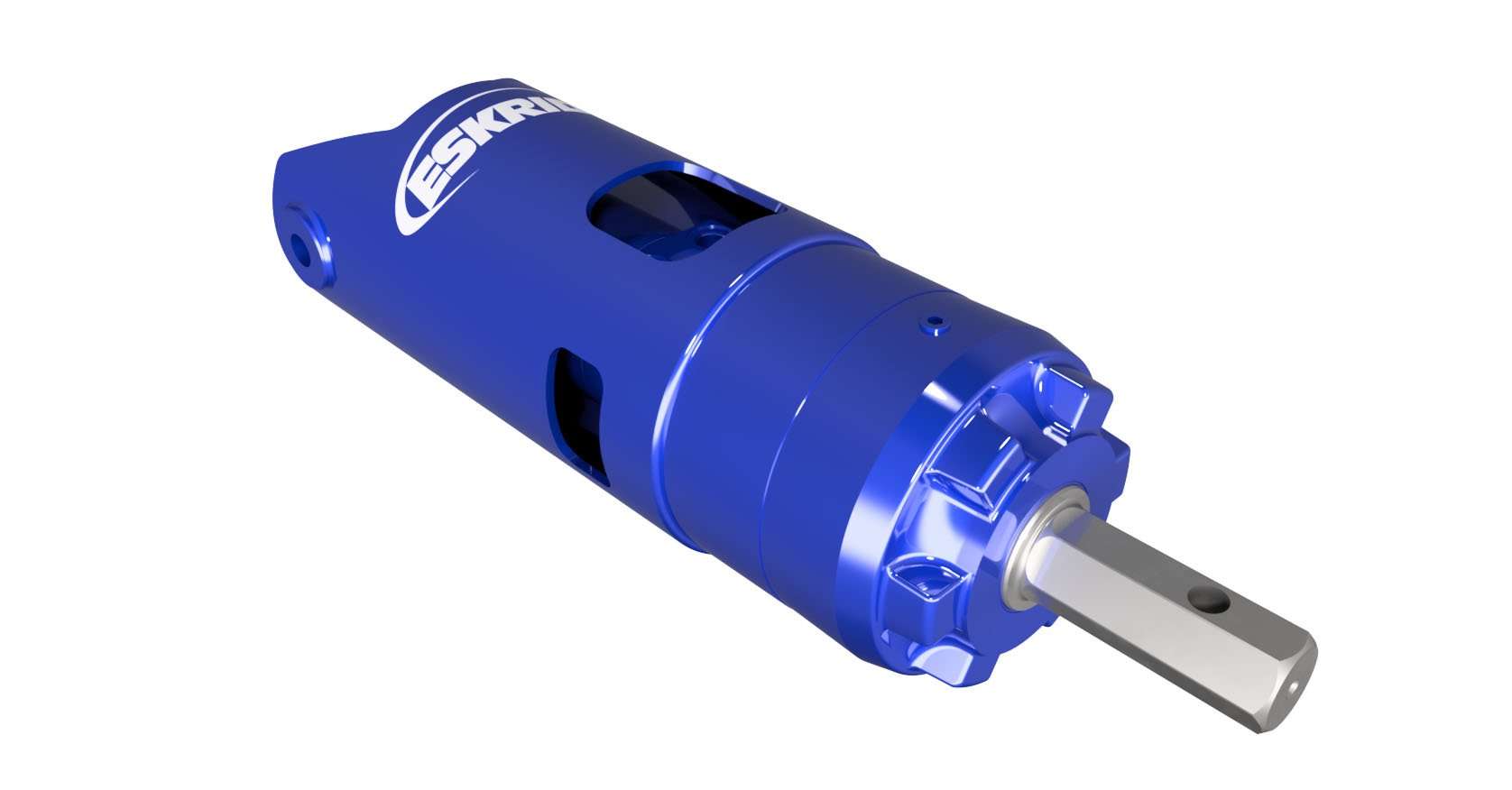

D50 Anchor Drive
Output Torque
1,500-5,000 Ft. Lbs.
2,034-6,779 Nm
Features & Benefits
- Heavy Duty
- Double Planetary
- High Efficiency
| Rated Output Torque | 1,500-5,000 Ft. Lbs. |
| Maximum System Pressure | 3,000 PSI |
| Output Shaft | 2″ HEX |
| Shaft Pullout Load | 10,000 Lbs. / 4,535 Kg. |
| Shaft Pressure Load | 15,000 Lbs. / 6,800 Kg. |
| Bail Boss Diameter | 1 In. / 25.4 mm |
| Approximate Weight | 150 Lbs. / 68 Kg. |
