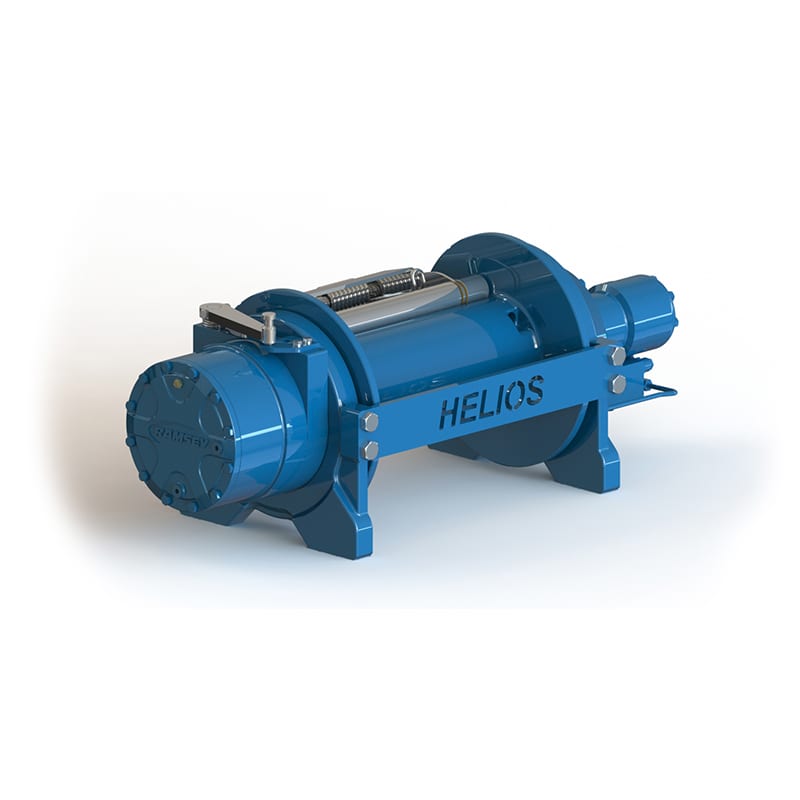

Helios 20000

The HELIOS 20000 Heavy Duty Planetary Winch was developed to meet and exceed the demands of the industrial and towing & recovery markets, specifically targeting the heavy-duty trailer market segment. The winch is approved to use with wire rope and select models are approved to use with synthetic rope.

Pull: 20,000 Lbs / 9,072 Kg
Speed: 37.5 Ft/Min / 11.4 M/Min
Cable Capacity: 155 Ft / 47.2 M (short), 260 Ft / 79.2 M (std.)

Categories: Hydraulic, Planetary Products

Features & Benefits

• Compact Design
– same mounting as the competition
• Foot Mount or Mid Mount
• High Efficiency Planetary Gear Set
• Reliable Negative Draft Clutch
– Manual or Air
• Spring Applied, Hydraulic Released Disc Brake
• Integrated Roller Tensioner
– using heavy-duty torsion spring force
• Over or Under Wound Rope Availability
• Optional: Cable and Hook Installed
– additional information coming soon
• Meets SAE J706
• Made in the USA

APPLICATIONS:

Trailer
Specialty Vehicle

DOCUMENTS:

Ramsey Helios Series Brochure
