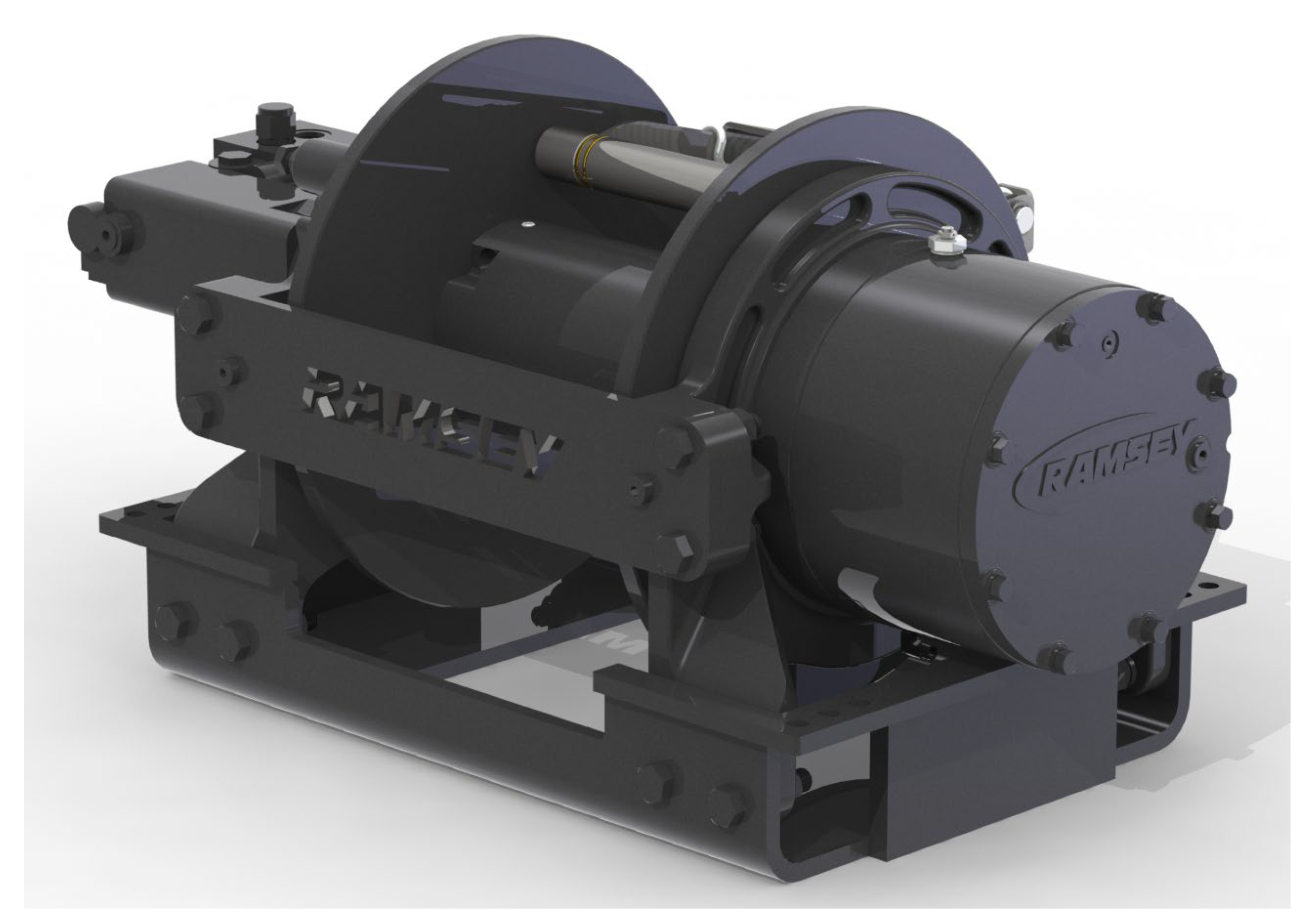

Helios 30000
The HELIOS 30000 Heavy Duty Planetary Winch was developed to meet and exceed the demands of the industrial and towing & recovery markets, specifically targeting the heavy-duty trailer market segment. The winch is approved to use with wire rope and select models are approved to use with synthetic rope.
Lowmount Frame:
Pull: 30,018 Lbs / 13,616 Kg
Low Speed: 42 Ft/Min / 12.9 M/Min / High Speed: 84 Ft/Min / 25.8 M/Min
Cable Capacity: 259Ft / 79 M
Without Lowmount Frame:
Pull: 30,000 Lbs / 8.75 Kg
Speed: 20 Ft/Min / 6.2 M/Min
Cable Capacity: 108Ft / 33 M
Features & Benefits
• Compact Design
– same mounting as the competition
• Foot Mount or Mid Mount
• High Efficiency Planetary Gear Set
• Reliable Negative Draft Clutch
– Manual or Air
• Spring Applied, Hydraulic Released Disc Brake
• Integrated Roller Tensioner
– using heavy-duty torsion spring force
• Over or Under Wound Rope Availability
• Optional: Cable and Hook Installed
– additional information coming soon
• Please contact Ramsey Winch to source Helios 30,000 product that meet J706 compliance requirements.
• Made in the USA
APPLICATIONS:
Trailer
Specialty Vehicle
DOCUMENTS:
914320-0226-E Operating/Service/Maintenance Manual
914331-0226-B Operating/Service/Maintenance Manual
