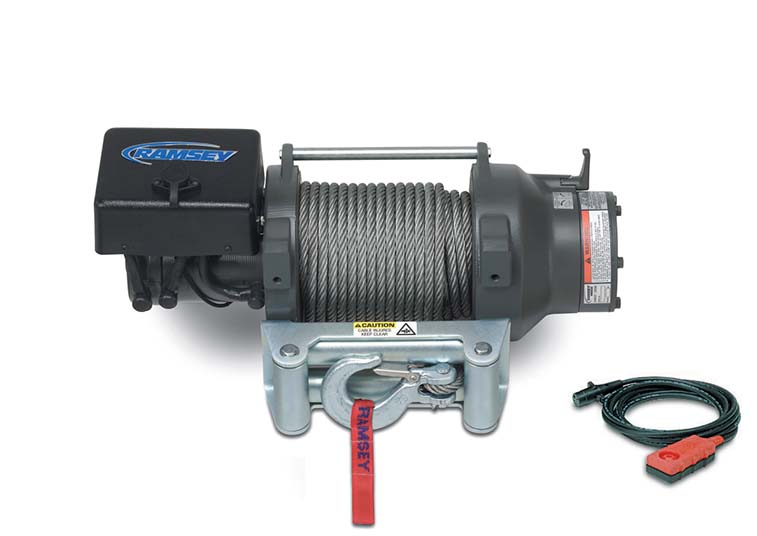

Patriot 16500

Rated Line Pull: (single line) 16,500 lb (7,484 kg)

Gear Reduction Ratio: 298:1 (12 V)

Motor: Series wound – 5.5 hp 12V DC

Overall Dimensions: (LxWxH) 24.3” x 8.5” x 11” (617 mm x 215 mm x 279 mm)

Drum Size: Diameter 3.5” (88.9 mm) Length 8” (203 mm)

Weight: 120 lb (54 kg)

Cable Supplied: 90 ft (27.4 m) of 7/16” (11 mm) 6 x 25 galvanized EIPS wire rope with replaceable clevis hook with safety latch

Mounting Bolt Pattern: 10.00 ± .015 in. x 4.50 ± .015 in. Foot – 8 Threaded Holes 7/16”-14 x 0.75” Deep Side – 2 Threaded Holes 7/16”-14 x 0.75” Deep

16,500 lb Rated Line Pull
Efficient 5.5 HP 12 V DC series wound electric reversible motor for increased pulling power
Proven three-stage planetary gear system design for fast line speed
Heavy duty gears for mission critical performance
Motor and solenoids are grounded directly to battery
Strong automatic load-holding brake for strength
Easy to use and verify engagement spring loaded pull and rotate clutch design for free spooling
Weather resistant solenoid assembly
The Patriot Series comes with either a 12 ft pendant or the patented (US # 6,995,682) wireless remote
6 ft (1.83 m) 2 gauge battery cables with connectors
Comes standard with 7/16” EIPS galvanized wire rope
Hawse Fairlead standard
Roller Fairlead available
