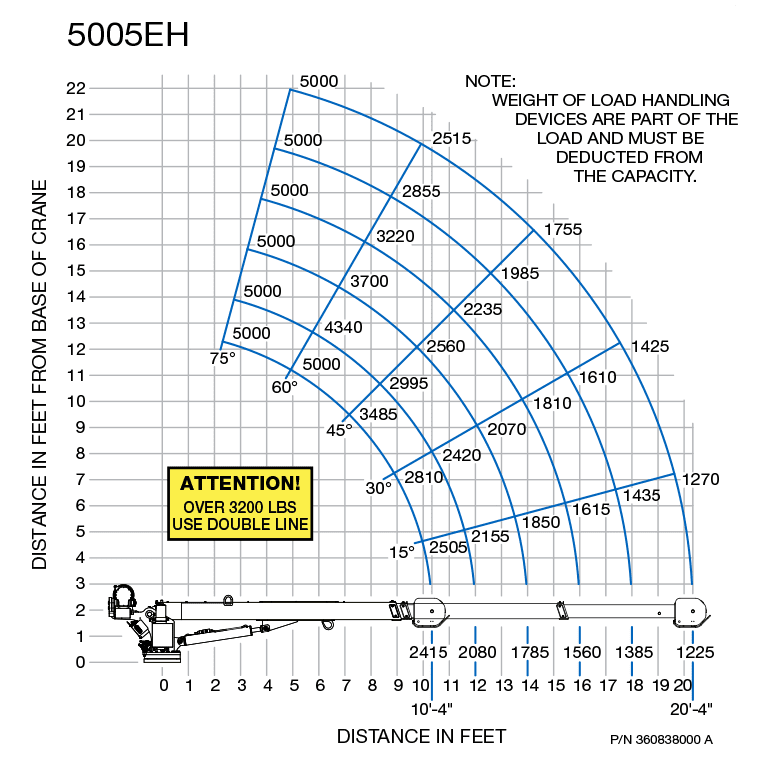

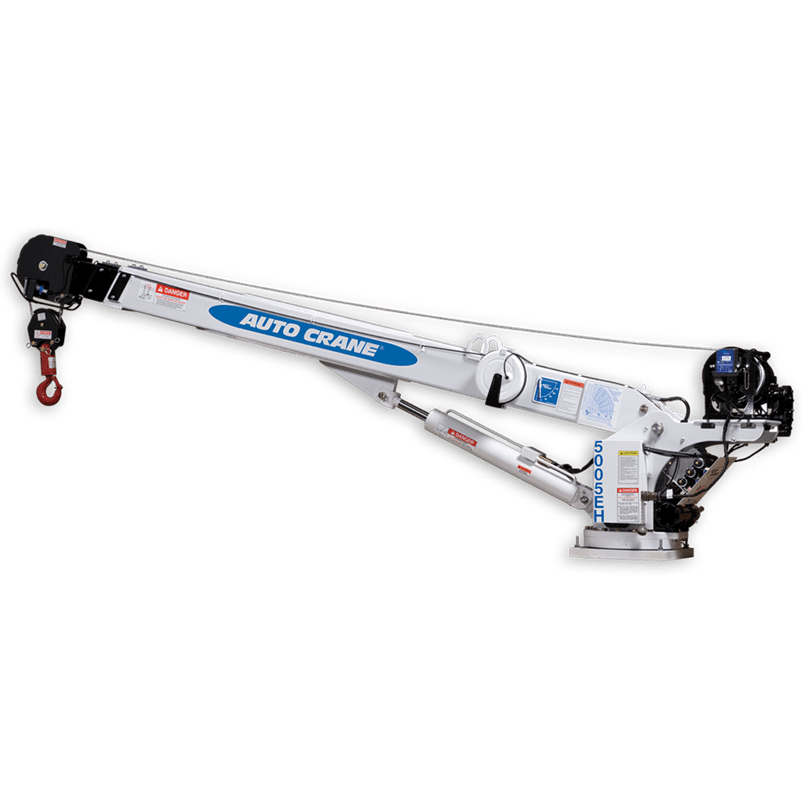

| Capacity | 5,000 lbs (2,268 kg) at 5.0 ft (1.5 m) | ||
| Rating | 25,000 ft-lb (3.46 t-m) | ||
| Length | 20.3 ft (6.17m) fully extended | ||
| Weight | 1,455 lb (627 kg) | ||
| Chassis | Class 4 (14,500 GVWR minimum) | ||
| Body | Titan 38 | ||
| Stowed Boom Length | 13′ 1″ (3.98 m) | ||
| Extended Boom Length | 20′ 4″ (6.2 m) | ||
| Width | 1′ 9.75″ (.55 m) | ||
| Height | 2′ 11.75″ (.90 m) | ||
| Base Plate Dimensions | 16.75″ x 16.75″ (0.43 m x 0.43 m) | ||
| Single Line Speed | 36 ft/min (10.97 m/min) | ||
| Boom Down | 33-41 seconds (full stroke of cylinder) | ||
| Boom Retract | 33-41 seconds | ||
| Motor | 2.5 hp 24V DC electric hoist motor | ||
| Cable | 80 ft (24.3 m) of 5/16″ (8 mm) aircraft quality cable | ||
| Standards | ANSI B30.5, OSHA 1910.180 | ||
| Warranty | 2 year warranty | ||
| Resources |
5005EH Manual 5005EH 24VDC Manual 5005EH Part No. Table Crane Accessories Part No. Table Service Cranes Sales Sheet EHC-5 NexStar Manual EHC-5 Wireless 361106584-0923-A EHC-5 NexStar 990800007-0721-B EHC-5 NexStar (990800047) Service Manual |
||
Requirements
- Truck must be equipped with 738896-000 outriggers or equal
- 14,500 GVWR minimum chassis requirement. (Does not include bodies and accessories)
- Battery Information: 575 amp cold cranking rating, 130 minute reserve capacity, maintenance type battery required for 12/24 volt DC operation. 75 amp minimum truck alternator required. Two batteries required.
Configurations
- Continuous or 370° rotation
Control Options
- Hard-wired or Omnex wireless (tether option), non-proportional
- NexStar III wireless (tether option), independent proportional
