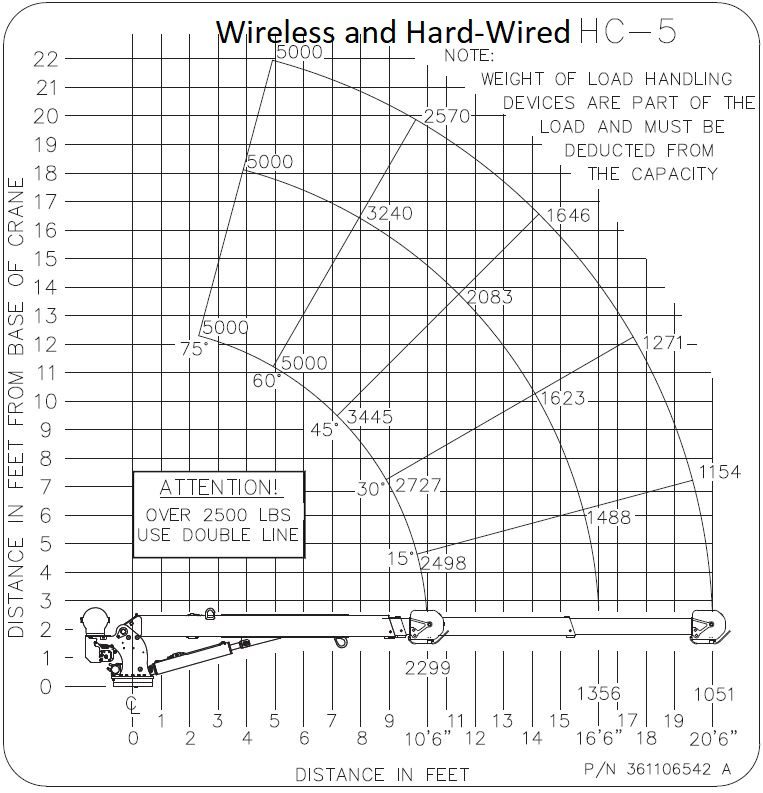

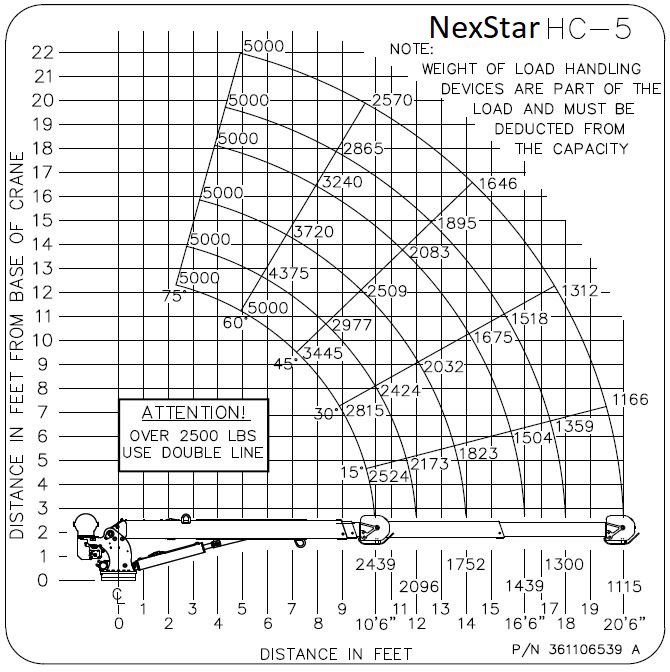

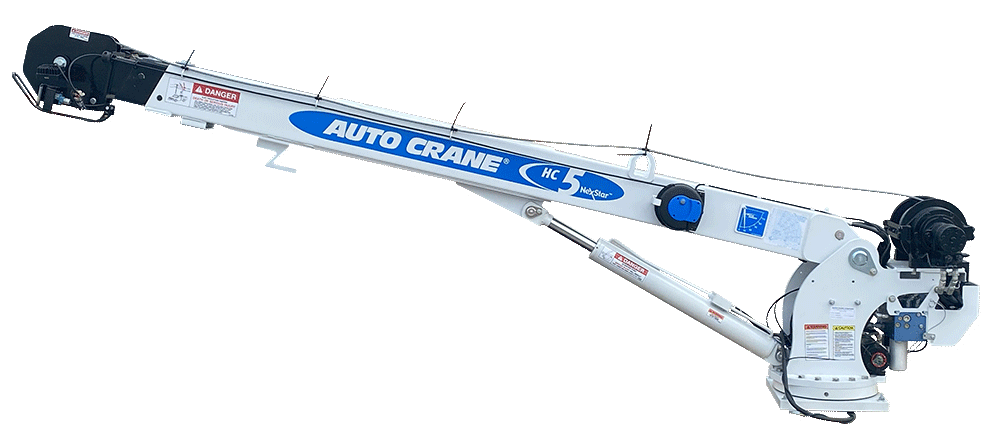

| Capacity | 5,000 lbs (2,268 kg) at 5.0 ft (1.5 m) | ||
| Rating | 25,000 ft-lb (3.46 t-m) | ||
| Length | 20.5 ft (6.25 m) fully extended | ||
| Weight | 1,455 lb (660 kg) | ||
| Chassis | Class 4 (14,500 GVWR minimum) | ||
| Body | Titan 38 | ||
| Stowed Boom Length | 10′ 4″ (3.96 m) | ||
| Extended Boom Length | 20′ 4″ (6.2 m) | ||
| Width | 1′ 11¼” (.59 m) | ||
| Height | 2′ 11¾” (.83 m) | ||
| Base Plate Dimensions | 16.75″ x 16.75″ (0.43 m x 0.43 m) | ||
| Single Line Speed | 60 ft/min (18.3 m/min) | ||
| Boom Down | 11-15 seconds (full stroke of cylinder) | ||
| Boom Retract | 10-14 seconds (full stroke of cylinder) | ||
| Hydraulic Requirements | 8 gpm (30 L/min) at 2,750 psi (190 bar) | ||
| Cable | 80 ft (24.38 m) of 5/16″ (8 mm) aircraft quality cable | ||
| Standards | OSHA 1910.180 ANSI B30.5 | ||
| Warranty | 2 year warranty | ||
| Resources |
HC-5 NexStar Manual HC-5 Wireless Crane Accessories Part No. Table HC-5 NexStar 990800004-0124-B |
||
For more support resources, [click here]
Features and Benefits of NexStar™ Models
- Proportional control of multiple functions simultaneously and independently
- Adjust any function anytime to a different speed, for total control over the load
- Level sensors monitor the angle of the truck and crane with the NexStar FM remote system on a Titan® crane body
- Prevents operation in unsafe, unlevel conditions
- Automatic stop at 100% load capacity
- Keeps people, equipment, and loads safer
- Adjustable speed settings; from 25% to 100%
- Enables fine tuning of speeds for total control over the load
- The NexStar FM remote system receiver displays load-monitoring and diagnostic readouts in plain English
- No codes to look-up or memorize; operator views precise percentage load capacity
- NexStar available with either tethered or fully-featured wireless remote options
- Your choice for preferred control method
- Transmitter is IP66 rated and CE certified
- Sealed and water protected for maximum durability
Requirements
- Truck must be equipped with 738896-000 outriggers or equal
- 14,500 lbs. GVWR minimum chassis requirement. (Does not include bodies or accessories)
- Minimum 360,000 in.-lbs. RBM
- Engine tachometer and throttle control required for proper crane installation
Control Options:
- NexStar™ 4 with wireless remote (tether option)
