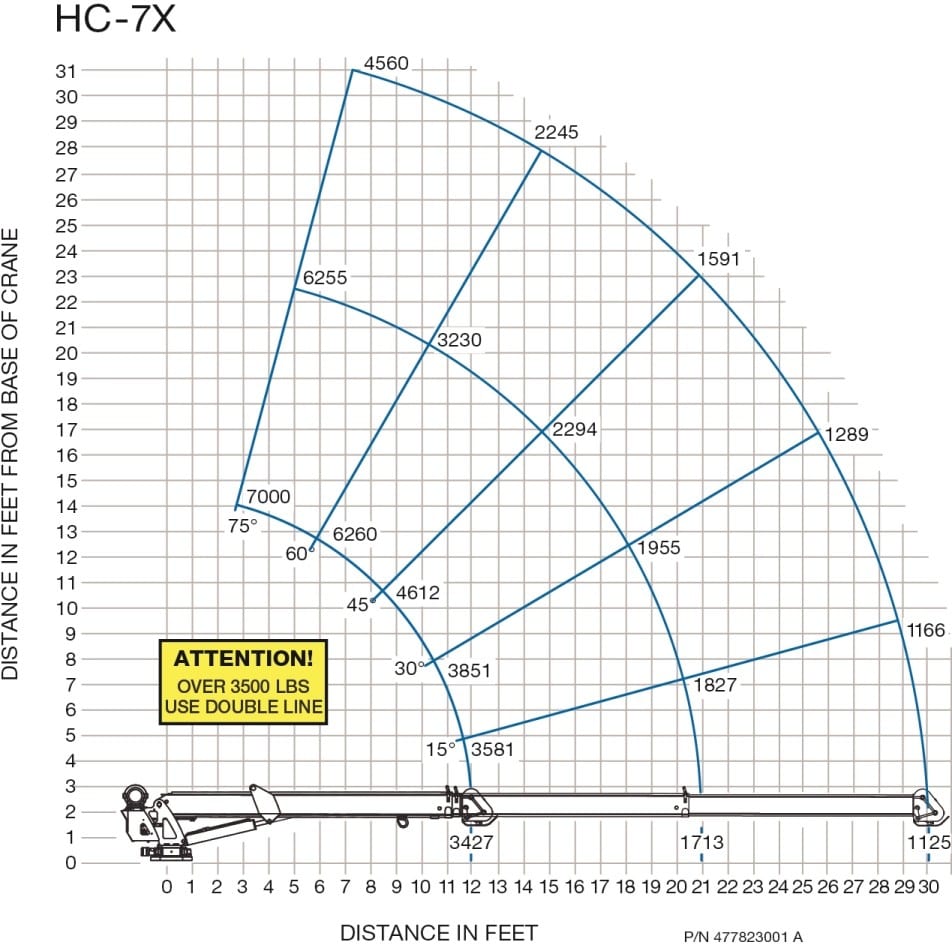

| Capacity | 7,000 lbs (3,175 kg) at 6.6 ft (2.0 m) | ||
| Rating | 43,000 ft-lb (5.94 t-m) | ||
| Length | 30 ft (9.14 m) fully extended | ||
| Weight | 1,865 lb (846 kg) | ||
| Chassis | Class 5 (19,500 GVWR) | ||
| Body | Titan 38, Titan 50, Titan 60 | ||
| Stowed Boom Length | 13′ 4″ (3.96 m) | ||
| Extended Boom Length | 30′ 0″ (6.1 m) | ||
| Width | 1′ 11¼” (.59 m) | ||
| Height | 2′ 8¾” (.83 m) | ||
| Base Plate Dimensions | 16.75″ x 16.75″ (0.43 m x 0.43 m) | ||
| Single Line Speed | 55 ft/min (16.8 m/min) | ||
| Boom Down | 18-21 seconds (full stroke of cylinder) | ||
| Boom Retract | 16-22 seconds (full stroke of cylinder) | ||
| Hydraulic Requirements | 8 gpm (30 L/min) at 2,750 psi (190 bar) | ||
| Cable | 95 ft (28.96 m) of 3/8″ (9.52 mm) aircraft quality cable | ||
| Standards | ANSI B30.5, OSHA 1910.180 | ||
| Warranty | 2 year warranty | ||
| Resources |
HC-7x Flyer HC-7x NexStar Manual Crane Accessories Part No. Table |
||
For more support resources, [click here]

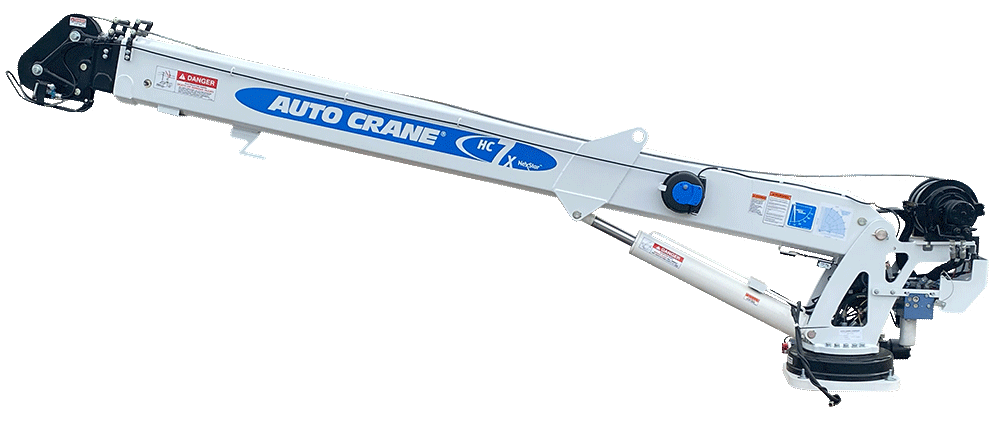

Features and Benefits of the HC-7x Crane
- Get the most lift capacity with one of the lightest 30′ 7,000 lb cranes on the market
- Save valuable payload on your class 5 truck
*Only in “supplement” mode for 30 seconds
- Hexagonal boom is made of high strength steel
- Allows 30′ reach with only 160 lbs of added weight over the base model 20′ HC-7 crane
- Less side-to-side play of nested sections
- Automatic overload protection system
- Keeps people, equipment, and loads safer
- Full, non-continuous worm-gear rotation
- Stronger rotation design
- 450° movement for maximum versatility in lifting
- +75° to -12° boom elevation
- Greater work area capability with maximum range of working angle limits
- Dual zone capacity
- Allows more lifting off the back of Class 5 truck
- 2 year warranty
- All parts are covered unlike the competition which typically only cover the parts they manufacture for the warranty period
- Read more about our warranty
Features and Benefits of NexStar™ Models
- NexStar wireless remote offers the traditional proportional trigger or the new proportional joystick control
- Proportional trigger allows control of multiple crane functions simultaneously with one trigger speed
- Proportional joysticks allow up to four crane functions to run at different speeds for total control over the load
- Either mode allows easy operation of the remote with one hand while keeping eyes on the task
- Level sensors monitor the angle of the truck and crane with the NexStar remote system on a Titan® crane body
- Prevents operation in unsafe, unlevel conditions
- Automatic stop at 100% load capacity
- Keeps people, equipment, and loads safer
- Adjustable max speed ranges; 100%, 75%, 50% and 25%
- Enables adjustment of max speed from fast positioning to fine control for aligning the load in tight positions
- The NexStar wireless remote system receiver displays load-monitoring and diagnostic readouts in plain English
- No codes to look-up or memorize; operator views precise percentage load capacity
- NexStar available with either tethered or fully-featured wireless remote options
- Your choice for preferred control method
- Transmitter is weather tight (IP66 rated) and CE certified
- Sealed from dust, oil and water for maximum durability
- Learn more about NexStar technology
