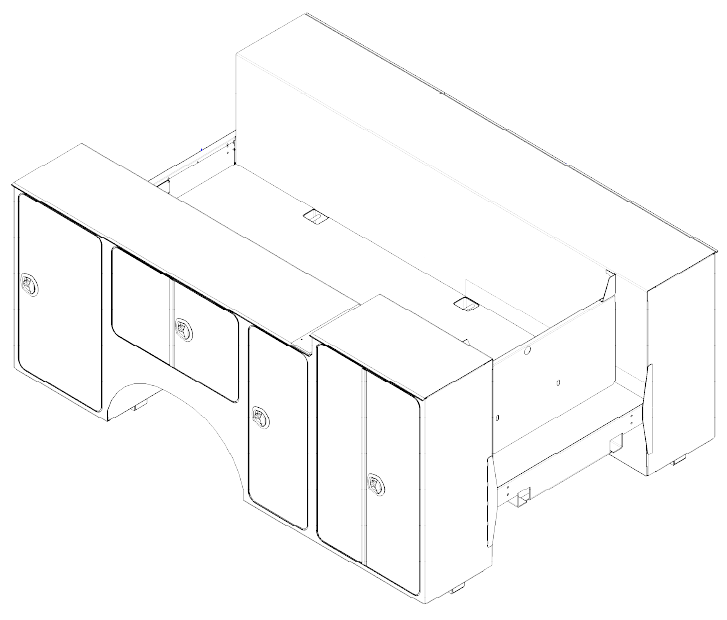

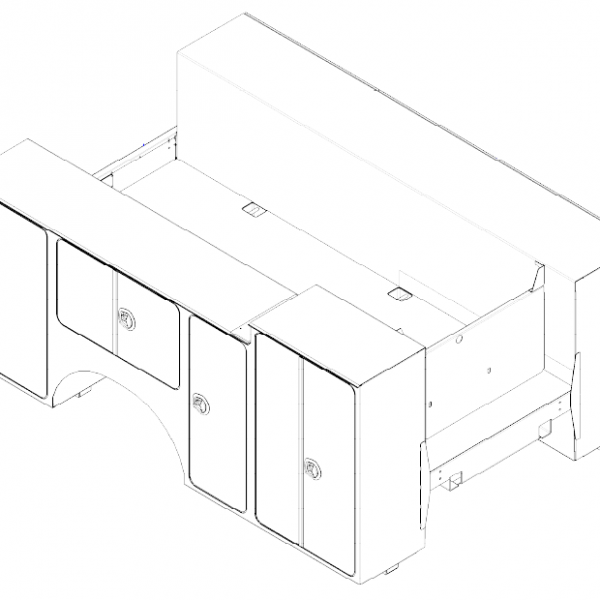

9′ and 11′ Service Bodies for Class 4 and 5 Trucks

Features / Benefits
Heavy-duty performance and extended service life:

• Patented one-piece 10 gauge (3.6mm) side-pack design for rugged, off-road use minimizes weld seams for less cracking and rust
• 12 gauge (2.8mm) tread plate on tops and cargo area for added durability
• Integral crane box transfers load directly to outriggers reducing stress on the chassis — reinforced up to 38,000 ft lb (5.3 tM)
• Internal stainless steel hinges reduce potential corrosion points
• Double-paneled Galvanneal doors for added strength
• Gas door struts reduce wear-and-tear
• Rounded door corners throughout reduce effect of load on stress points
• Flush door panels with bulb seal gasket and functional full-length drip rail for dryer compartments
• Fully undercoated for rust prevention

Safety and security built in:

• Fully stable throughout lifting radius of the crane for maximized crane capacity
• Large, flush-mounted, angled, stop-tail-turn lights for better visibility
• Four or six heavy-duty tie downs for payload security
• Three-point latching system provides secure door closures
• Fender flares add protection to the body at the wheel well
• Rounded door corners throughout reduce effect of load on stress points
• Best-in-class Two-Year Limited Warranty

Productivity enhanced:

• Unobstructed crane compartment maximizes usable cargo space
• Double-paneled, slam-able tailgate for one hand ease-of-use
• Complete shelf package to optimize storage needs

Chassis Requirements:

• Class 4 or 5 (11,200 GVWR; 5080 GVM)
• 34″ (864 mm) frame rail width
• Dual rear wheels — 93.75″ (2.38 m) overall width
• 14,500 lb (6,577 kg) chassis required for cranes in excess of 25,000 ft lb (3.46 tM)
• Truck stability will govern the actual approved working loads that will apply at different points of rotation
• Actual chassis requirements should be determined by adding weight of body, crane, accessories, and anticipated cargo

Options:

• Manual or hydraulic outriggers
• 12″ (305 mm) heavy-duty bumper
• 20″ (508 mm) workbench storage bumper
• Receiver hitch
• Rope and dome lights for compartments
• Flood lights
• Crane boom support
• Individual drawer units
• Drop-well for front compartment
• Slide-out tool tray
• Adjustable shelving
• Lockable sliding tops
• Master locking system
• Grab handles
• Oxy/acetylene bottle holder

Substructure:

• Interlocking channel frame reduces weight while increasing rigidity
