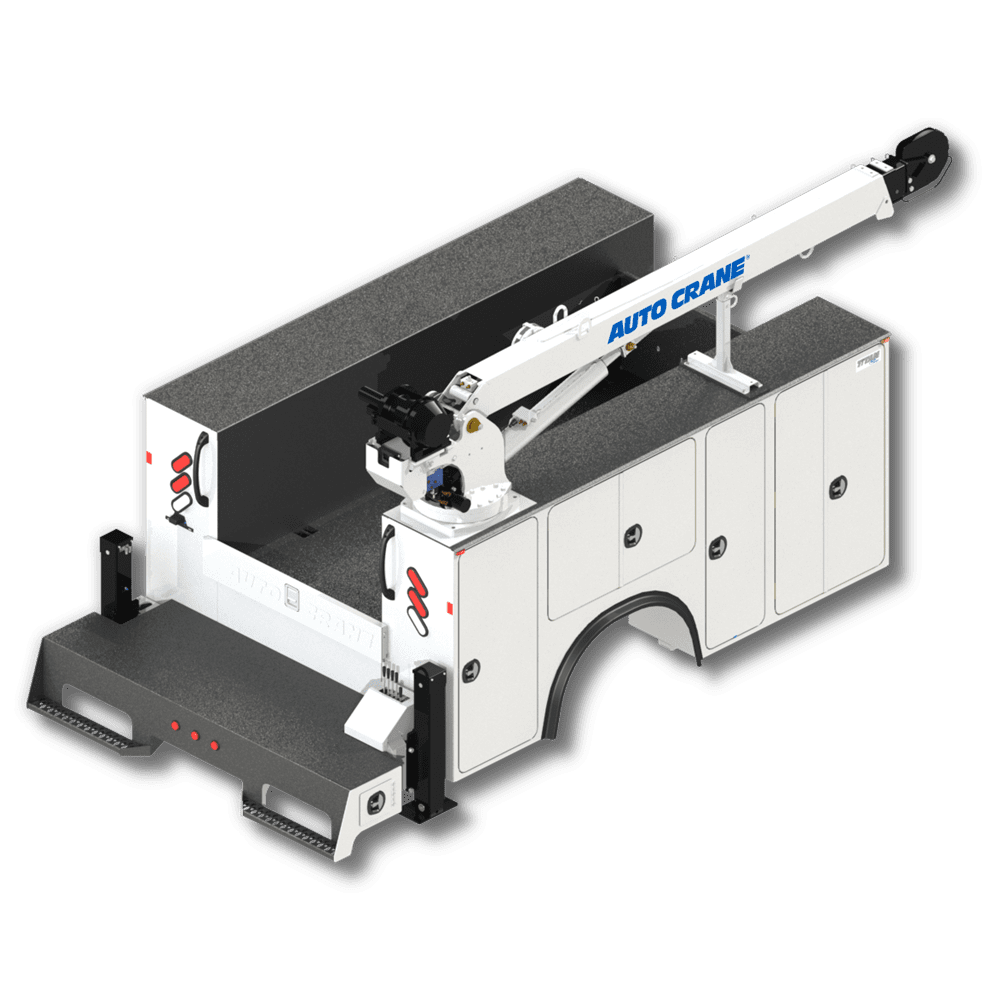

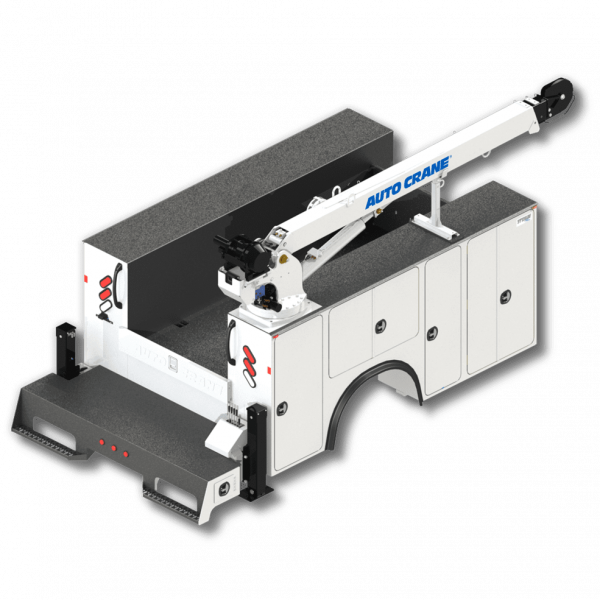

Features / Benefits
Heavy-duty performance and extended service life:

• Patented one-piece 10 gauge (3.6mm) side-pack design for rugged, offroad use minimizes weld seams for less cracking and rust
• 12 gauge (2.8mm) tread plate on tops and cargo area for added durability
• Integral crane box transfers load directly to outriggers reducing stress on the chassis — reinforced up to 60,000 ft lb (8.3 tM)
• Internal stainless steel hinges reduce potential corrosion points
• Double-paneled galvanneal doors for added strength
• Gas shock door closers reduce wear-and-tear
• Rounded door corners throughout reduce effect of load on stress points
• Flush door panels with bulb seal gasket and functional full-length drip rail for dryer compartments
• Fully undercoated for rust prevention

Safety and security built in:

• Fully stable throughout lifting radius of the crane for maximized crane capacity
• Large, flush-mounted, angled, stop-tail-turn lights for better visibility
• Four or six heavy-duty tie downs for payload security
• Three-point latching system provides secure door closures
• Fenderettes add protection to the body at the wheel well
• Rounded door corners throughout reduce effect of load on stress points
• Best-in-class Two-Year Limited Warranty

Productivity enhanced:

• Unobstructed crane compartment maximizes usable cargo space
• Double-paneled, slammable tailgate for one hand ease-of-use
• Complete shelf package to optimize storage needs

Chassis Requirements:

• 26,000 lbs GVWR
• 34in (864 mm) frame rail width and heavy-duty reinforced frame, hydraulic outriggers only recommended
• Dual rear wheels — 93.75″ (2.38 m) overall width
• Maximum tire size 11.00 — 22.50
• Truck stability will govern the actual approved working loads that will apply at different points of rotation
• Actual chassis requirements should be determined by adding weight of body, crane, accessories, and anticipated cargo
• PTO provision required for some crane & compressor power system options, please consult your Auto Crane Dealer or Sales Person

Note: It is the responsibility of the crane installer to comply with OSHA Truck Crane stability requirements as specified by 29 CFR Part 1910.180 (c) (1)

Options:

• Dual slide hydraulic outriggers and single slide with kick-out outriggers options available
• 24in and 30in workbench storage bumper options available
• Receiver hitch
• LED strip lighting for compartments
• Flood lights
• Crane boom support
• Individual drawer units
• Drop-well for front compartment
• Slide-out tool tray
• Adjustable shelving
• Lockable sliding tops
• Master locking system
• Oxy/acetylene bottle holder

Substructure:

• Interlocking channel frame reduces weight while increasing rigidity
