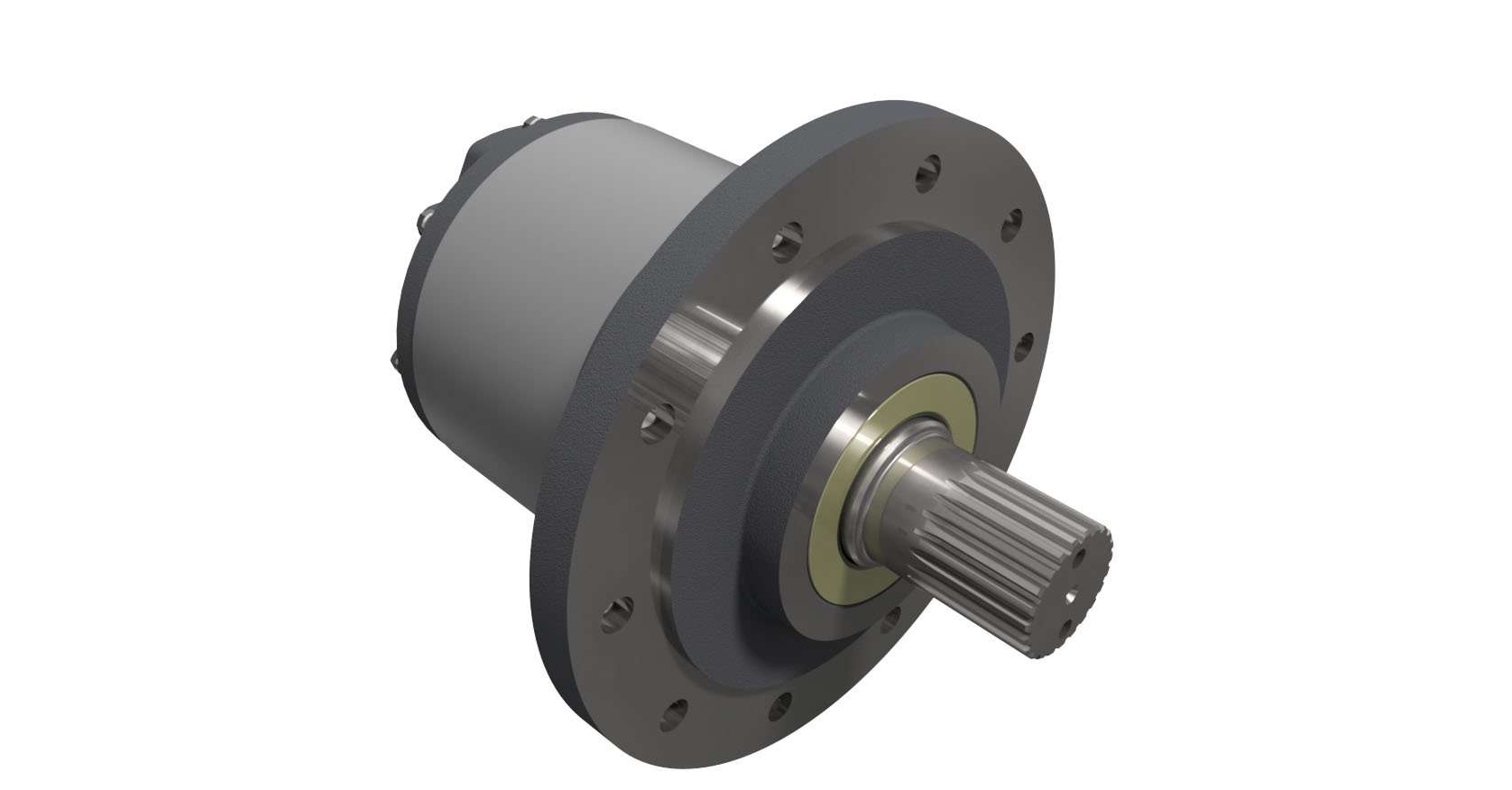

130 Shaft Drive
Output Torque
130,000 In. Lbs.
14,688 Nm
Features & Benefits
- Exclusively Available With Load-N-Lock™ Shaft Retention
- Also Available As Model 132L With Heavy-Duty Shaft
- Gearbox Mounting – Flanged, Flangeless, Eccentric Round Pilot, Rectangular Base, Square Base or Custom
- Output Shaft – 23T 8/16 DP Spline x 4.15″, 23T 8/16 DP Spline x 4.46″, 23T 8/16 DP Spline x 2.96″, 3″ Dia. x .62″ Key x 3.50″, or Custom
- Input Mount SAE “A” (2 & Modified 4 bolt), SAE “B” (2 Bolt, 4 Bolt), SAE “C” (2 & 4 Bolt) and SAE “D” (4 Bolt)
| Maximum Intermittent Output Torque | 130,000 In. Lbs. / 14,688 Nm. |
| Continuous Output Torque | 65,000 In. Lbs. / 7,344 Nm. |
| Maximum Input Speed | 3,000 RPM |
| Standard Ratios | 3.6, 4, 6, 13, 16, 19, 26, 33, 36, 45 |
