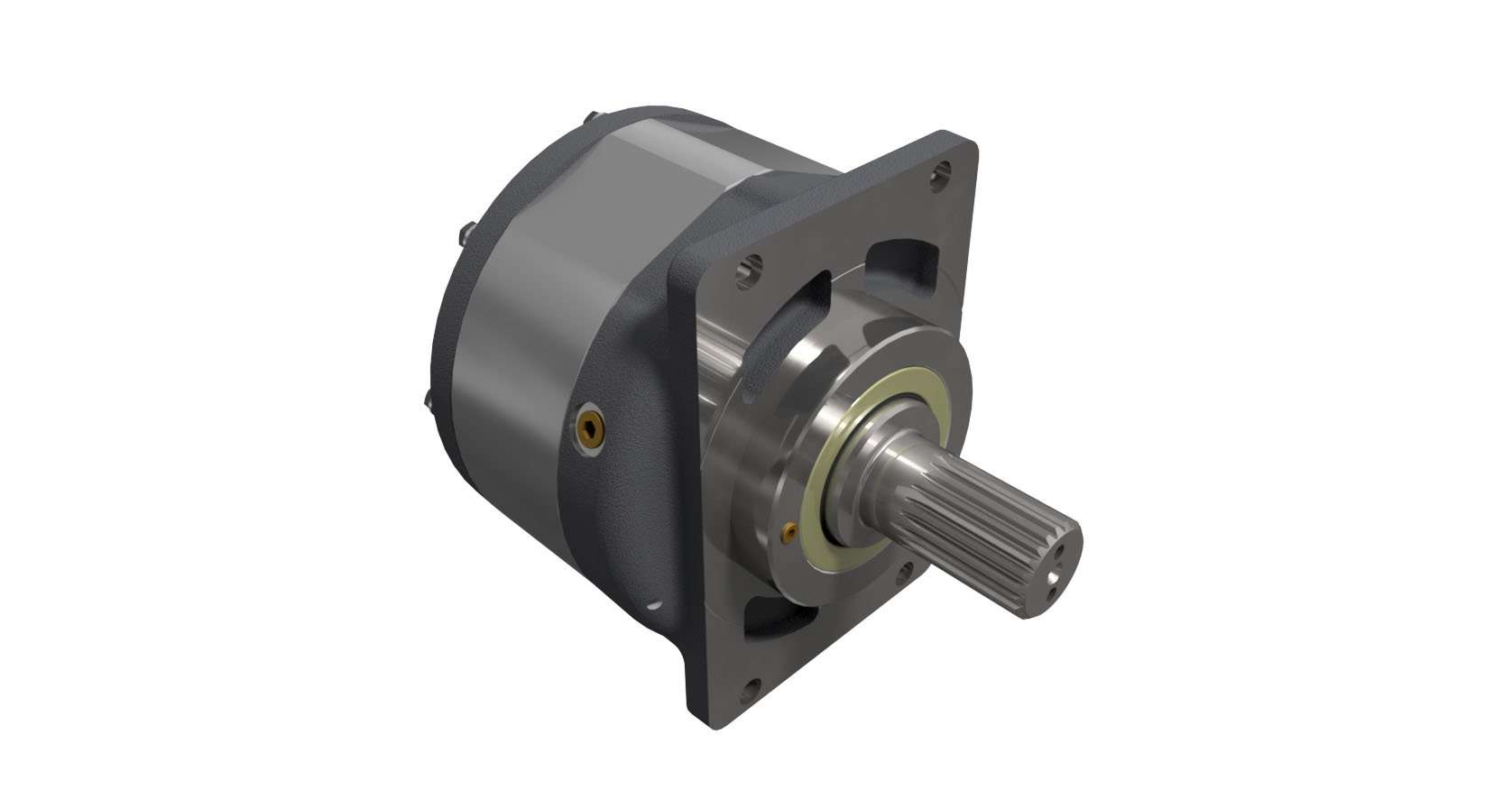

65 Shaft Drive
Output Torque
65,000 In. Lbs.
7,344 Nm
Features & Benefits
- Plate Retained Shaft
- Gearbox Mounting – Rectangular Flange, Rectangular Flange with Eccentric Pilot or Custom
- Output Shaft – 23T 12/24 DP Spline x 3.74″, 2.00″ Dia x 3/8″ Key, 2.25″ Dia x 1/2″ Key, 3.00″ Dia x 3/4 Key, 2.00″ Dia x 1/2″ Key or Custom
- Input mount SAE “A” (2 & Modified 4 bolt), SAE “B” (2 Bolt, 4 Bolt), SAE “C” (2 & 4 Bolt) and SAE “D” (4 Bolt)
SPECIFICATIONS
| Maximum Intermittent Output Torque | 65,000 In. Lbs. / 7,344 Nm. |
| Continuous Output Torque | 30,000 In. Lbs. / 3,672 Nm. |
| Maximum Input Speed | 3,000 RPM |
| Standard Ratios | 4, 6, 16, 19, 21, 26, 33, 36, 45, 57, 70, 77, 86, 95, |
