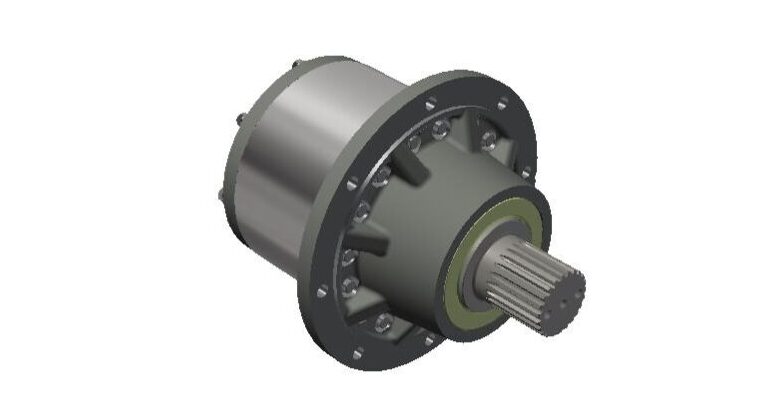

131 Shaft Drive
Output Torque
130,000 In. Lbs.
14,688 Nm
Features & Benefits
> Exclusively Available with Load-N-Lock™ Shaft Retention
> Manufactured with 132L Heavy-Duty Shaft Assembly
> Gearbox Mounting – Flanged or Custom
> Output Shaft – 3.00” Dia. X .625” Key, 20T 8/16 DP Spline x 2.12″, 23T 8/16 DP Spline x 2.25″, 2 ½” Hex or Custom
> Input Mount SAE “A” (2 & Modified 4 bolt), SAE “B” (2 Bolt, 4 Bolt), SAE “C” (2 & 4 Bolt) and SAE “D” (4 Bolt)
Maximum Intermittent Output Torque | 130,000 In. Lbs. / 14,688 Nm. |
Continuous Output Torque | 65,000 In. Lbs. / 7,344 Nm. |
Maximum Input Speed | 3,000 RPM |
Standard Ratios | 4, 6, 19, 26, 33, 36, 45 |
