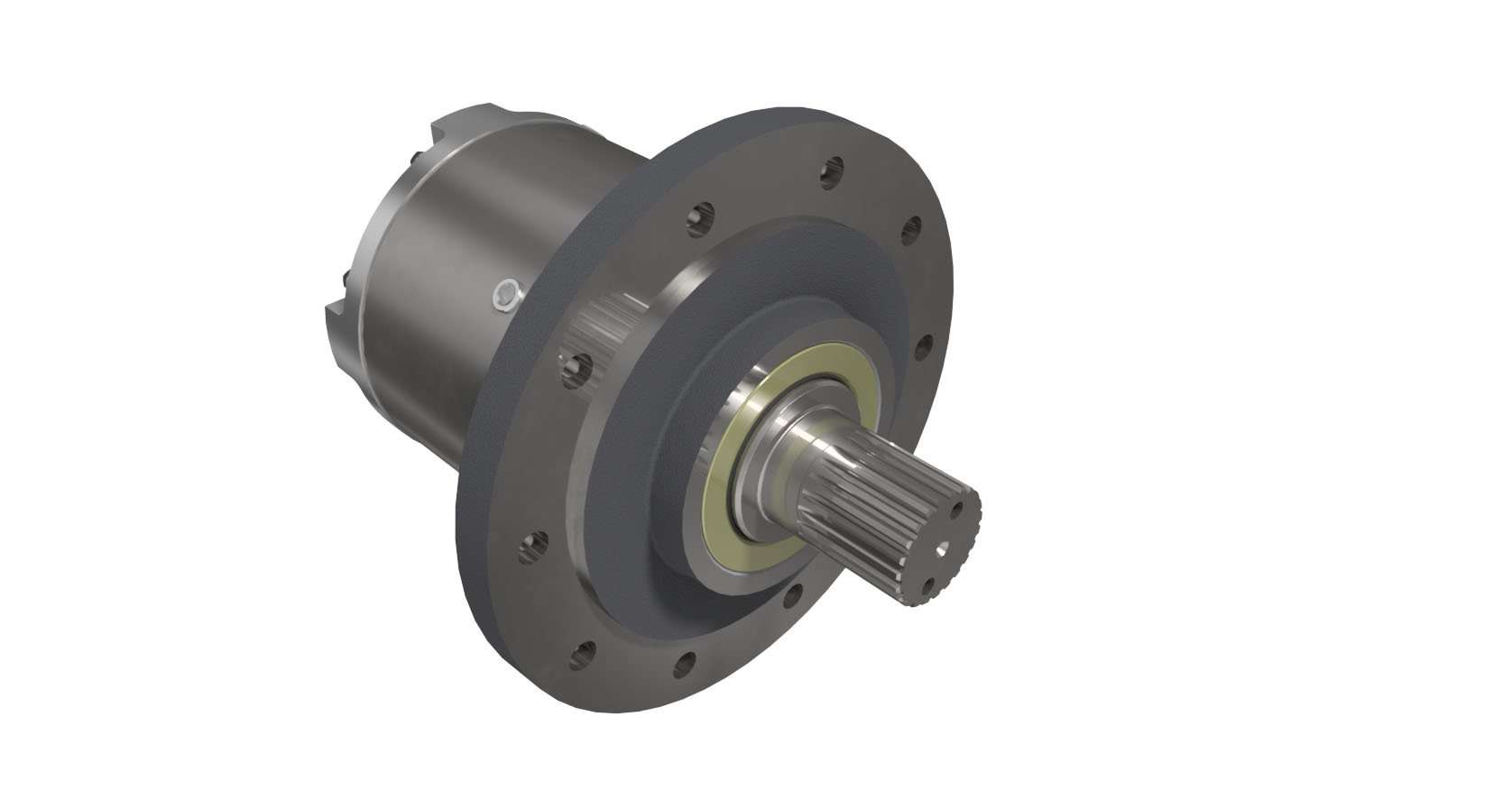

160L Shaft Drive
Output Torque
160,000 In. Lbs.
18,078 Nm
Features & Benefits
- Exclusively Available With Load-N-Lock™ Shaft Retention System
- Gearbox Mounting – Round Flange, Round With Quick Eccentric Flange, Squre Flange, Rectangular Flange, Flangeless, or Custom
- Output Shaft – 23T 8/16 DP Spline x 2.25″ Long, 3.00″ Dia x 3/4″ Key, 23T 8/16 DP Spline x 1.22″ Long, 23T 8/16 DP Spline x 2.72″ Long, 3.50″ Dia x 7/8″ Key, or Custom
- Input Mount SAE “A” (2 & Modified 4 Bolt), SAE “B” (2 or 4 Bolt), SAE “C” (2 & 4 Bolt), SAE “D” (4 Bolt)
| Maximum Intermittent Output Torque | 160,000 In. Lbs. / 18,078 Nm. |
| Continuous Output Torque | 80,000 In. Lbs. / 9,039 Nm. |
| Maximum Input Speed | 3,000 RPM |
| Standard Ratios | 4, 5, 19, 24, 26, 32, 86, 104, 117, 147, 159, 192, 199 |
