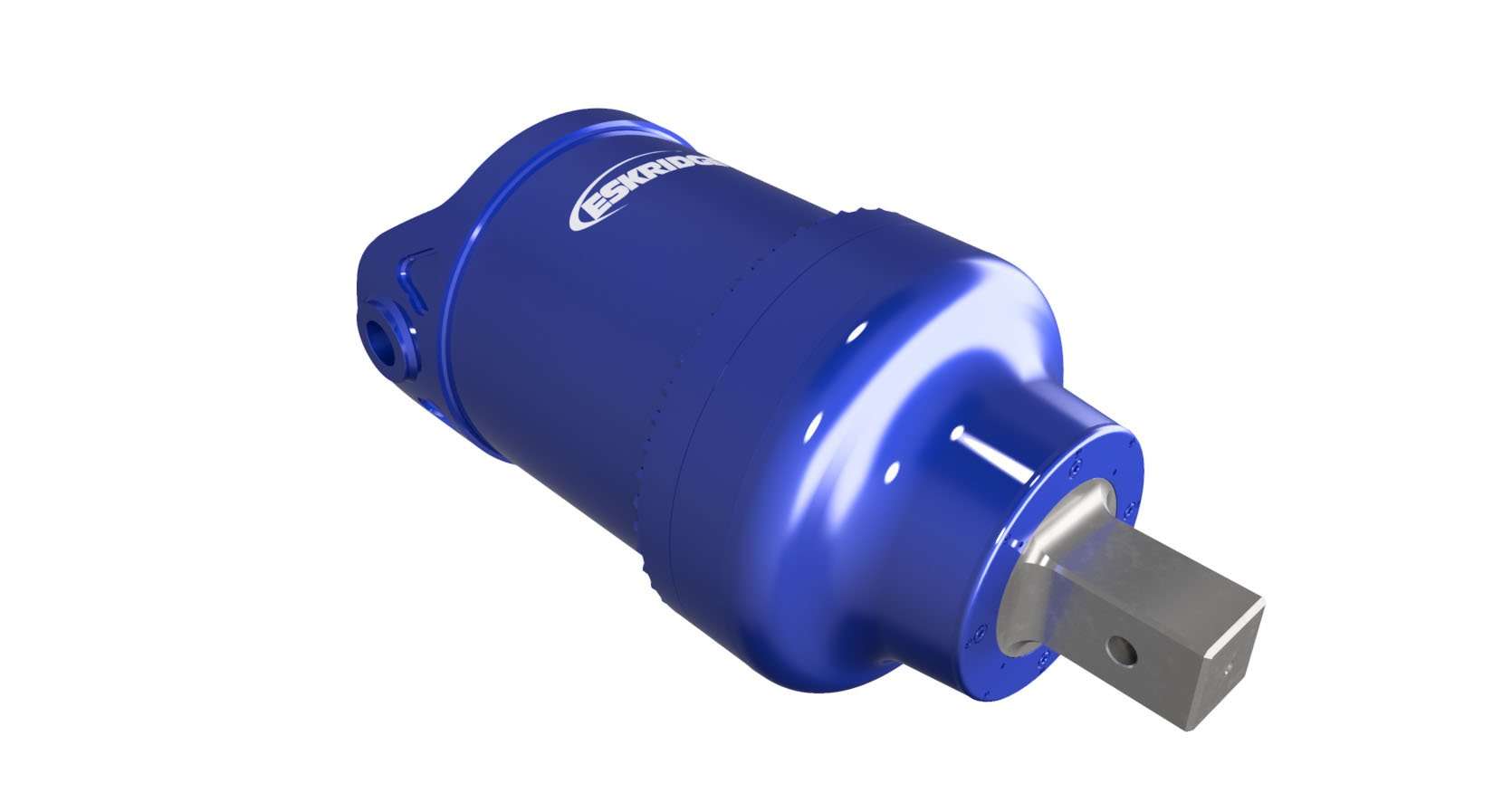

DH375 Anchor Drive
Output Torque
375,000 Ft. Lbs.
508,431 Nm
Features & Benefits
FEATURES
- Heavy Duty
- Triple Planetary
- High Efficiency
- Anti-Spin Back Protection
- Load-N-Lock TM Shaft Retention
SPECIFICATIONS
| Rated Output Torque | 375,000 Ft. Lbs. |
| Maximum System Pressure | 5,000 PSI |
| Output Shaft | 7.87″ Square HEX |
| Shaft Pullout Load | 275,000 Lbs. / 124,700 Kg. |
| Shaft Pressure Load | 275,000 Lbs. / 124,700 Kg. |
| Bail Boss Diameter | 4.500 In. / 114.3 mm |
| Approximate Weight | 7,100 Lbs. / 3220 Kg. |
