EHC-4 – 16ftReturn to Products Page

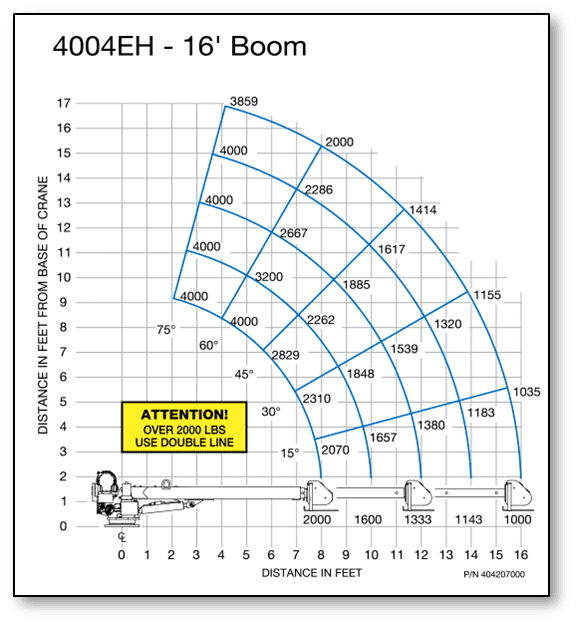

| Capacity | 4,000 lbs (1,812 kg) at 4.0 ft (1.2 m) | ||
| Rating | 16,000 ft-lb (2.2 t-m) | ||
| Length | 16 ft (4.88 m) fully extended | ||
| Weight | 890 lb (403.7 kg) | ||
| Chassis | Class 3 (8,800 GVWR minimum) | ||
| Body | Titan 16 or Titan 38 | ||
| Stowed Boom Length | 9′ 10.5″ (3.00 m) | ||
| Extended Boom Length | 16′ (4.88 m) | ||
| Width | 1′ 10″ (.56 m) | ||
| Height | 2′ 3″ (.69 m) | ||
| Base Plate Dimensions | 16.75″ x 13.5″ (0.43 m x 0.34 m) | ||
| Single Line Speed | 30 ft/min (9.17 m/min) | ||
| Boom Down | 14-20 seconds (full stroke of cylinder) | ||
| Boom Retract | 17-21 seconds | ||
| Motor | 4.8 hp 12 volt DC hoist motor | ||
| Cable | 80 ft (24.3 m) of 5/16″ (8 mm) aircraft quality cable | ||
| Standards | ANSI B30.5, OSHA 1910.180 | ||
| Warranty | 2 year warranty | ||
| Resources |
4004EH Tech Sheet EHC-4 16′ and 20′ NexStar Manual EHC-4 16′ Wireless and Hard-Wired Manual 4004EH Part No. Table Crane Accessories Part No. Table Service Cranes Sales Sheet EHC-4 WIRELESS - 990800043-0923-A |
||
Requirements
- Truck must be equipped with jackleg extending minimum 3′ 9″ (1.14 m) from center-line of truck
- 8,800 GVWR minimum chassis requirement. (Does not include bodies and accessories)
- Battery Information: 575 amp cold cranking rating, 130 minute reserve capacity, maintenance type battery required for 12 volt DC operation. 70 amp minimum truck alternator required
Configurations:
- (PRX) hydraulic with manual second boom extension (PRX)
Control Options:
- Hard-Wired
- Omnex with wireless remote (tether option)
- NexStar™ with wireless remote (tether option)
